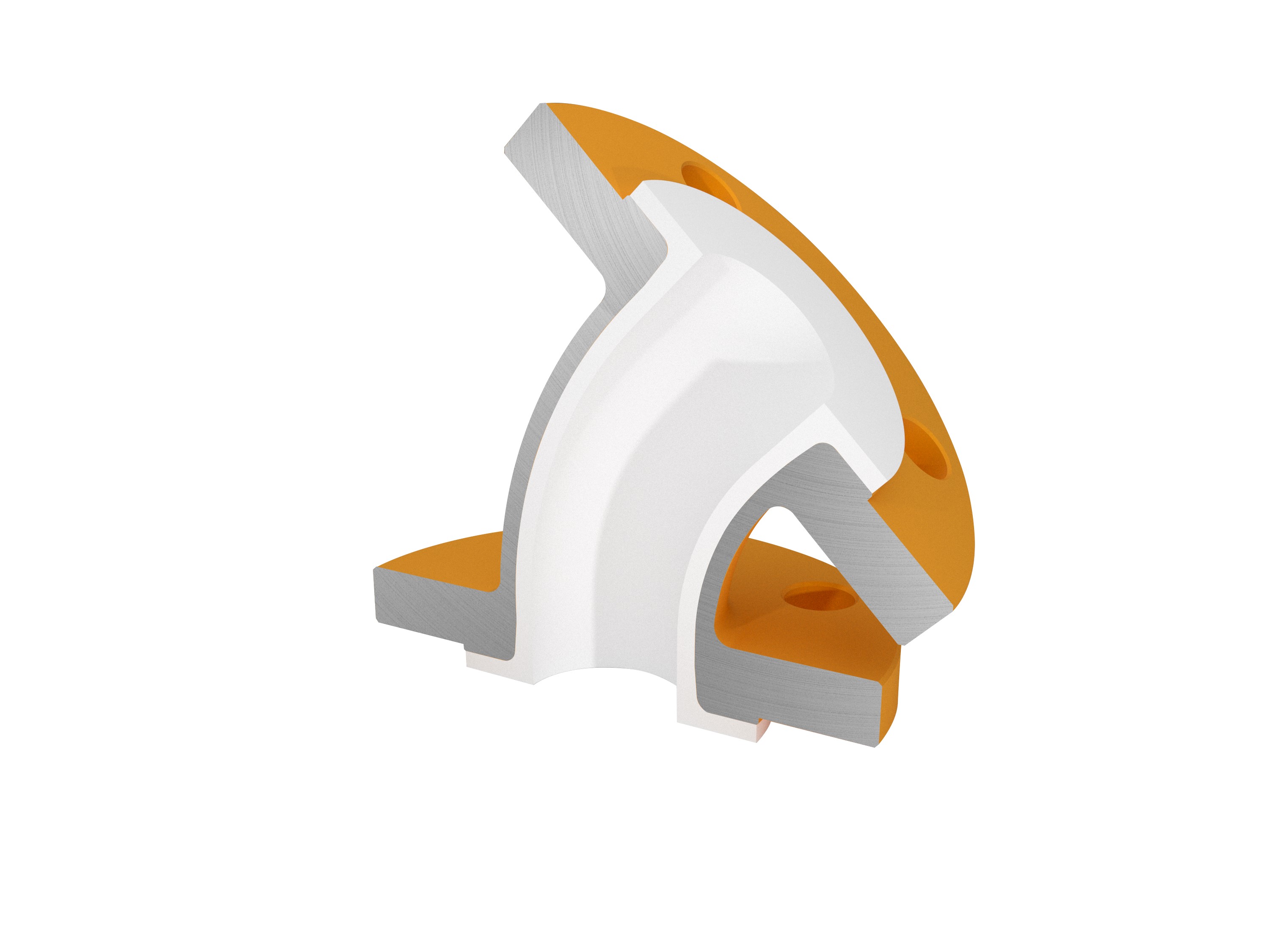

Curva a 45° rivestita in PTFE
- Data Sheet: A2-33
| DN | L mm | s ± 10% mm | Peso ca. kg |
|---|---|---|---|
| 1/2" | 45 | 3,0 | 1,7 |
| 3/4" | 45 | 3,0 | 2 |
| 1" | 45 | 3,0 | 3 |
| 1 1/4" | 51 | 3,5 | 4 |
| 1 1/2" | 57 | 3,5 | 6 |
| 2" | 64 | 4,0 | 9 |
| 2 1/2" | 76 | 4,5 | 13 |
| 3" | 76 | 5 | 15 |
| 4" | 102 | 5,5 | 20 |
| 5" | 114 | 5,5 | 26 |
| 6" | 127 | 6 | 33 |
| 8" | 140 | 6,5 | 54 |
| 10" | 165 | 7 | 75 |
| 12" | 190 | 7 | 110 |
| 14" | 190 | 7 | 118 |
| 16" | 203 | 7 | 145 |
| 18" | 216 | 7,0 | 165 |
| 20" | 241 | 7,0 | 210 |
| 24" | 279 | 7 | 290 |
