Valvole a 2 Vie in Esecuzione ANSI/ASME Classe 600 LBS
| • Estremità flangiate • Manovra a leva manuale o con riduttore manuale incluso • Attuatori disponibili su richiesta per tutti i modelli |

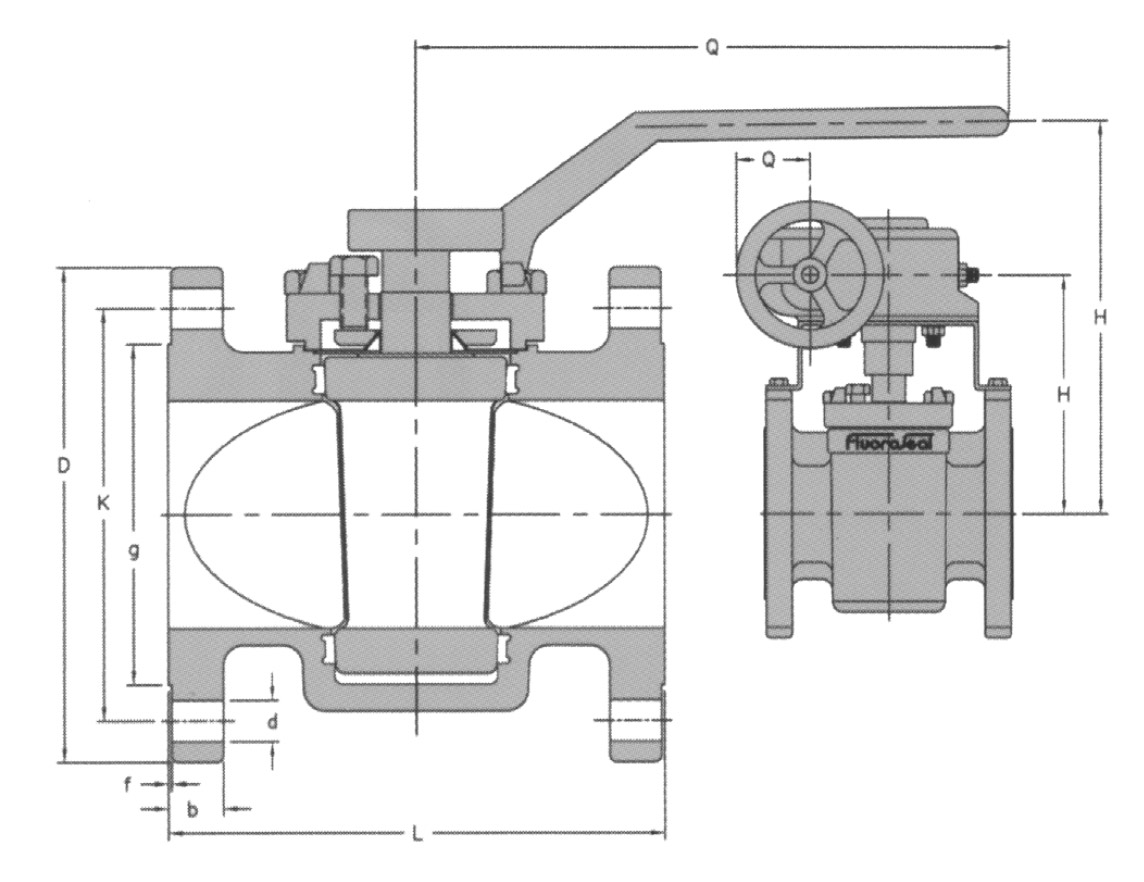

Dimensions in inches/mm
E = spazio richiesto per il rifacimento della boccola misurato come distanza dall’asse EG = fornite con riduttore manuale incluso N = numero fori Due (2) fori sulla parte superiore delle flange sono dotati di filettatura UNC. Vedi colonna fori UNC. * Disponibile su richiesta|
Dim. |
L |
H |
D |
K |
g |
b |
f |
d |
Q |
Peso |
E |
N |
Foro |
|||||||||||
|
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
kg |
lbs |
in |
mm |
# UNC |
||
|
1/2” |
6.50 |
165.10 |
3.38 |
85.70 |
3.75 |
95.30 |
2.62 |
66.50 |
1.38 |
35.10 |
0.56 |
14.20 |
0.25 |
6.35 |
0.62 |
15.70 |
8.00 |
203.20 |
3.6 |
8.0 |
6.38 |
162.10 |
4 |
- |
|
3/4” |
7.50 |
190.50 |
3.38 |
85.90 |
4.62 |
117.30 |
3.25 |
82.60 |
1.69 |
42.90 |
0.62 |
15.70 |
0.25 |
6.35 |
0.75 |
19.10 |
8.00 |
203.20 |
5.0 |
11.0 |
6.38 |
162.10 |
4 |
- |
|
1” |
8.50 |
215.90 |
4.50 |
114.30 |
4.88 |
124.00 |
3.50 |
88.90 |
2.00 |
50.80 |
0.69 |
17.50 |
0.25 |
6.35 |
0.75 |
19.10 |
9.00 |
228.60 |
7.3 |
16.0 |
8.50 |
215.90 |
4 |
- |
|
1 1/2” |
9.50 |
241.30 |
5.31 |
134.90 |
6.12 |
155.40 |
4.50 |
114.30 |
2.88 |
73.20 |
0.88 |
22.40 |
0.25 |
6.35 |
0.88 |
22.40 |
14.25 |
362.00 |
12.3 |
27.0 |
10.38 |
263.70 |
4 |
- |
|
2” |
11.50 |
292.10 |
6.25 |
158.80 |
6.50 |
165.10 |
5.00 |
127.00 |
3.62 |
91.90 |
1.00 |
25.40 |
0.25 |
6.35 |
0.75 |
19.10 |
16.50 |
419.10 |
18.2 |
40.0 |
12.25 |
311.20 |
8 |
- |
|
2 1/2” |
13.00 |
330.20 |
6.56 |
166.60 |
7.50 |
190.50 |
5.88 |
149.40 |
4.12 |
104.60 |
1.12 |
28.40 |
0.25 |
6.35 |
0.88 |
22.40 |
16.50 |
419.10 |
38.6 |
85.0 |
12.63 |
320.80 |
8 |
- |
|
3” |
14.00 |
355.60 |
6.56 |
166.60 |
8.25 |
209.60 |
6.62 |
168.10 |
5.00 |
127.00 |
1.25 |
31.80 |
0.25 |
6.35 |
0.88 |
22.40 |
16.50 |
419.10 |
38.6 |
85.0 |
13.63 |
346.20 |
8 |
- |
|
4” |
17.00 |
431.80 |
7.53 |
191.10 |
10.75 |
273.10 |
8.50 |
215.90 |
6.19 |
157.20 |
1.50 |
38.10 |
0.25 |
6.35 |
1.00 |
25.40 |
23.63 |
600.20 |
68.2 |
150.0 |
16.25 |
412.80 |
8 |
- |
|
4”EG |
17.00 |
431.80 |
9.10 |
231.10 |
10.75 |
273.10 |
8.50 |
215.90 |
6.19 |
157.20 |
1.50 |
38.10 |
0.25 |
6.35 |
1.00 |
25.40 |
7.25 |
184.20 |
81.8 |
180.0 |
17.63 |
447.80 |
8 |
- |
|
6”EG |
22.00 |
558.80 |
10.80 |
274.30 |
14.00 |
355.60 |
11.50 |
292.10 |
8.50 |
215.90 |
1.88 |
47.80 |
0.25 |
6.35 |
1.12 |
28.40 |
7.25 |
184.20 |
152.3 |
335.0 |
21.75 |
552.50 |
12 |
- |
|
8”EG |
26.00 |
660.40 |
12.75 |
323.90 |
16.50 |
419.10 |
13.75 |
349.30 |
10.62 |
269.70 |
2.19 |
55.60 |
0.25 |
6.35 |
1.25 |
31.80 |
9.75 |
247.70 |
222.7 |
490.0 |
26.63 |
676.40 |
12 |
11/8” - 8 |
|
10”EG* |
31.00 |
787.40 |
14.68 |
372.90 |
20.00 |
508.00 |
17.00 |
431.80 |
12.75 |
323.90 |
2.50 |
63.50 |
0.25 |
6.35 |
1.38 |
35.10 |
9.75 |
247.70 |
- |
- |
31.25 |
793.80 |
16 |
11/4” - 8 |
|
12”EG* |
33.00 |
838.20 |
16.40 |
416.60 |
22.00 |
588.80 |
19.25 |
489.00 |
15.00 |
381.00 |
2.62 |
66.50 |
0.25 |
6.35 |
1.38 |
35.10 |
13.75 |
349.25 |
- |
- |
33.75 |
857.30 |
20 |
11/4” - 8 |
|
14”EG* |
35.00 |
889.00 |
15.66 |
397.84 |
23.75 |
603.25 |
20.75 |
527.05 |
16.25 |
412.75 |
2.75 |
69.85 |
0.25 |
6.35 |
1.50 |
38.10 |
13.75 |
349.25 |
- |
- |
34.75 |
882.70 |
20 |
13/8” - 8 |
|
16”EG* |
39.00 |
990.60 |
21.29 |
540.72 |
27.00 |
685.80 |
23.75 |
603.25 |
18.50 |
469.90 |
3.00 |
76.20 |
0.25 |
6.35 |
1.63 |
41.28 |
9.85 |
250.19 |
- |
- |
46.00 |
1168.40 |
20 |
11/2” - 8 |
|
18”EG* |
43.00 |
1092.20 |
21.29 |
540.84 |
29.50 |
749.30 |
25.75 |
654.10 |
21.00 |
533.40 |
3.25 |
82.60 |
0.25 |
6.35 |
1.75 |
44.50 |
9.85 |
250.19 |
- |
- |
46.00 |
1168.40 |
20 |
15/8” - 8 |
