Rubber Expansion Joints in Hypalon

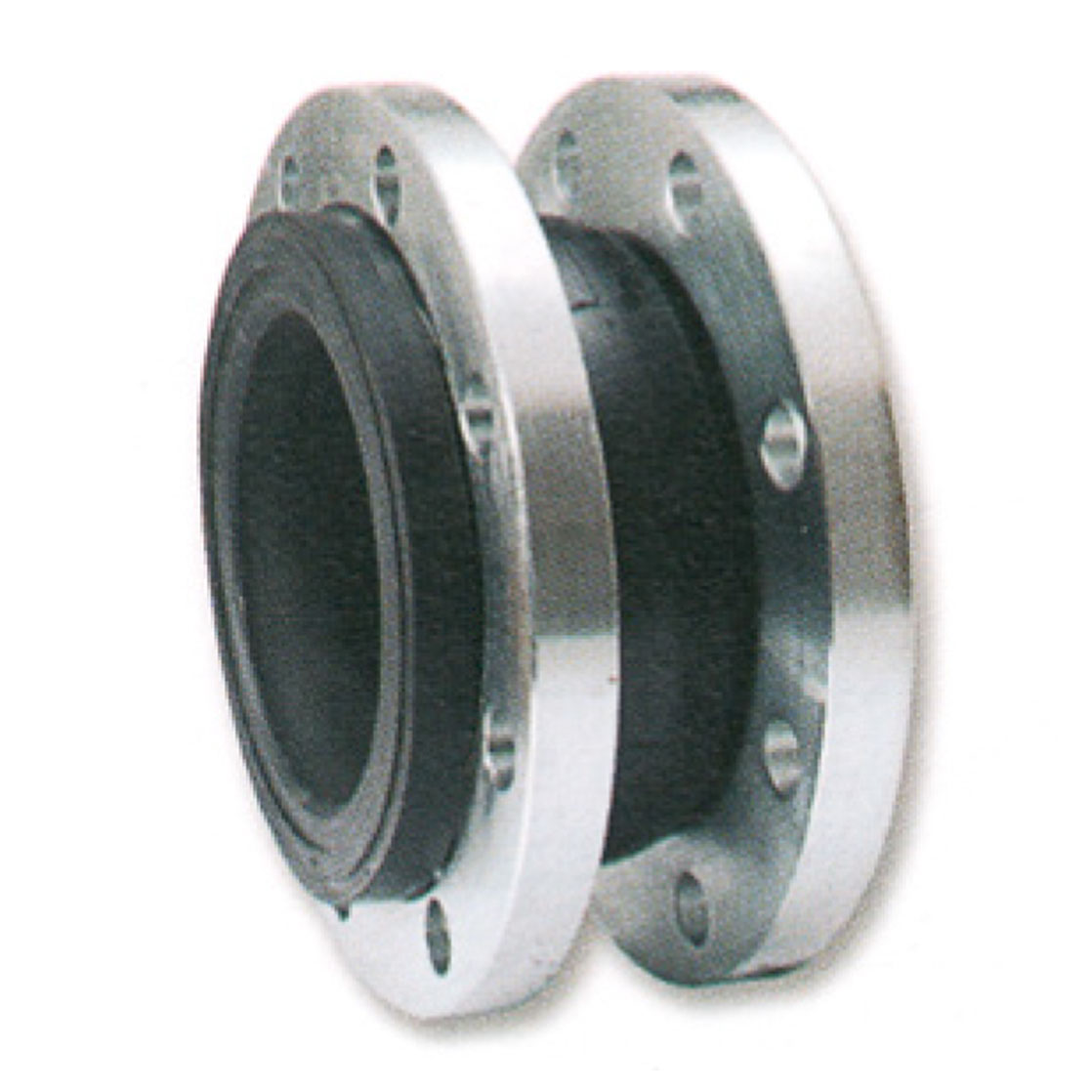

Rubber expansion joints in Hypalon with zinced flanges UNI PN 10

Rubber Expansion Joints in Hypalon

Rubber Expansion Joints in Hypalon

Specifications

• Working pressure: 1.6 MPa (16 Kgf/cm²)
• Bursting pressure: 4.8 Mpa (48 Kg/cm²)
• Temperature: - 10° C / + 100° C

Note
The pressure shown is valid for temperatures up to 80° C.
For operating temperatures higher, the maximum working pressure holds the table below.

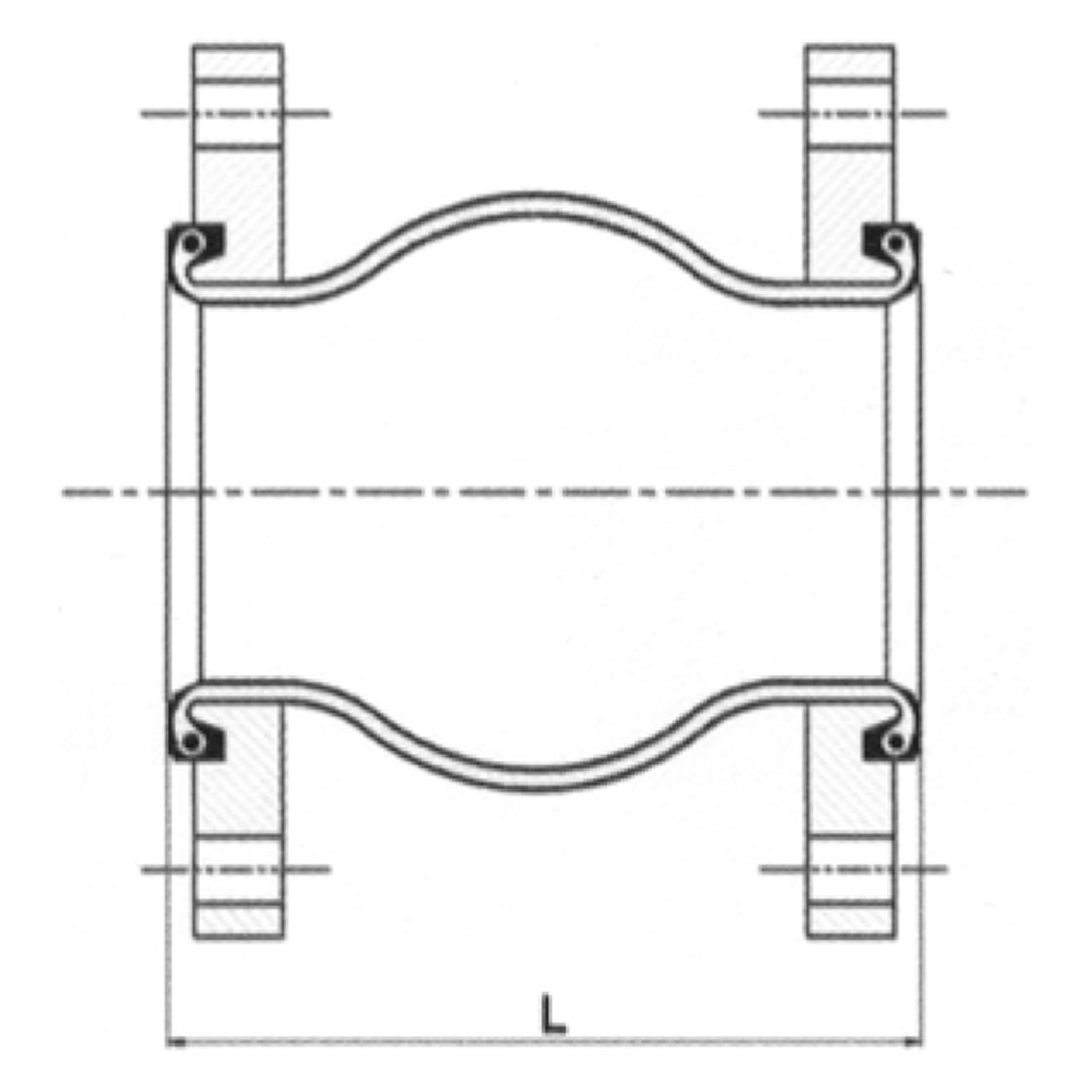

DN		L Lughezza fibra Free lenght	Movimenti max mammissibili (non contemporanei) Max allowable movements (not concurrent)				Sezione attiva Active area	Max pressione ammissibile fino a 80°C Max allowable pressure up to 80°C		Peso tot. Total weight
DN		L Lughezza fibra Free lenght	Assiale Axial		Laterale Lateral	Angolare Angular	Sezione attiva Active area			Peso tot. Total weight
mm	inch	mm	Compressione Compression mm	Estensione Stetch mm	mm	Gradi Degrees	cm2	Positiva positive bar	Depressione negative mm hg	kg
25	1”	130	20	12	±14	±15°	24	16	660	2
32	1 1/4”	130	20	12	±14	±15°	30	16	660	3,1
40	1 1/2”	130	20	12	±14	±15°	36	16	660	3,7
50	2”	130	20	12	±14	±15°	65	16	660	4,6
65	2 1/2”	130	20	12	±14	±15°	84	16	660	5,3
80	3”	130	20	12	±14	±15°	106	16	660	7
100	4”	130	20	12	±14	±15°	157	16	660	7,6
125	5”	130	20	12	±14	±15°	232	16	660	9,9
150	6”	130	20	12	±14	±15°	322	16	660	12,4
200	8”	130	20	12	±14	±15°	504	16	660	17,7
250	10”	130	20	12	±14	±15°	774	16	660	24
300	12”	130	25	16	±22	±15°	1074	16	660	31
350	14”	200	25	16	±22	±15°	1320	8	660	50
400	16”	200	25	16	±22	±15°	1780	8	660	67
500	20”	200	25	16	±22	±15°	2740	8	660	70
600	24”	260	25	16	±22	±10°	3870	8	660	110

Download PDF

BELLOWS COLORS

Rubber expansion joints in Hypalon with zinced flanges UNI PN 10
