AISI 316L LAS FF
- Data Sheet: C2-78

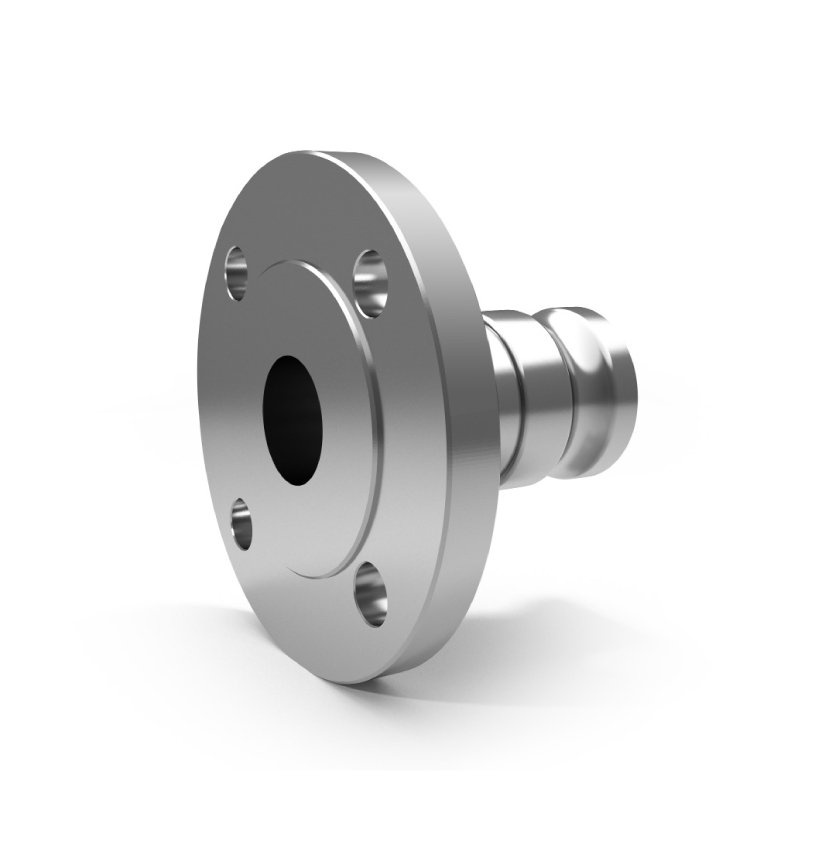

AISI 316L LAS FF EN 14420-7:2004 CAM & GROOVE - Diflon F5
Fitting
Description
| The fast fitting is used in chemical, pharmaceutical and food industries. The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of fitting from the other ones. The standard construction material is AISI 316L. The fitting flange is made according to the Standard Specification required by the customer. |

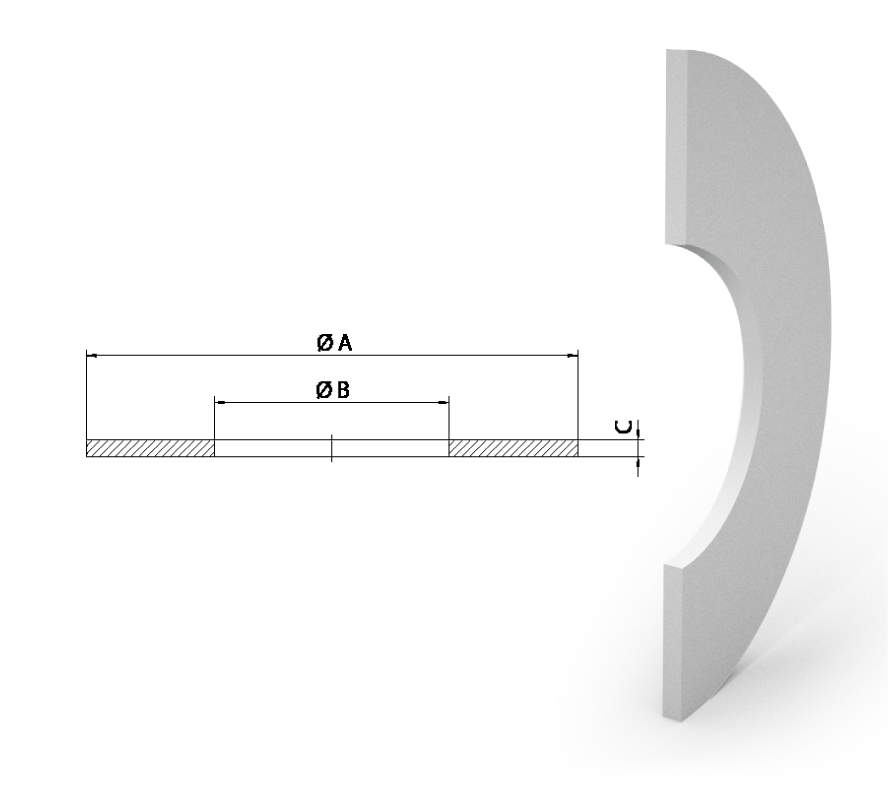

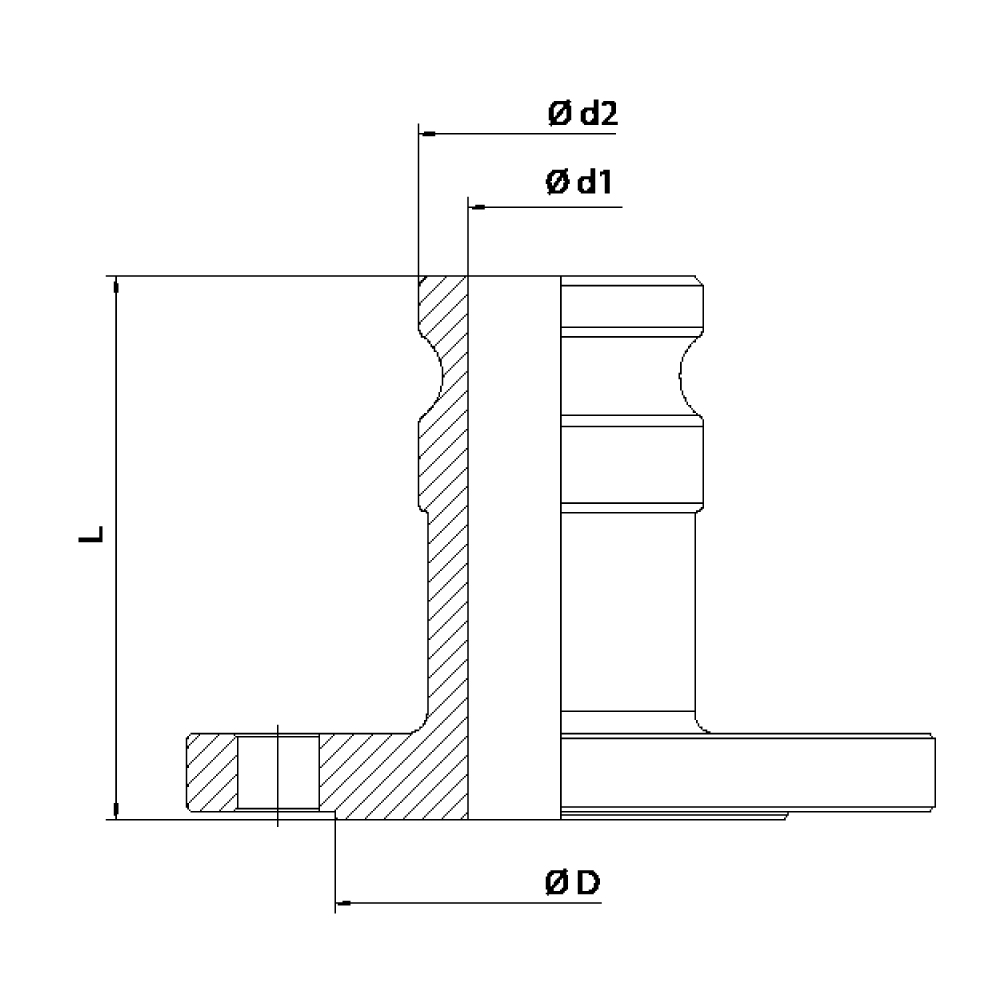

| DN | L | Ø D DIN | Ø D ANSI | Ø d1 | Ø d2 |
|---|---|---|---|---|---|
| 15 - ½" | 80 | 45 | 35 | 13 | 24,5 |
| 20 - ¾" | 80 | 58 | 43 | 20 | 29 |
| 25 - 1" | 85 | 68 | 51 | 24 | 36,5 |
| 32 - 1 ¼" | 90 | 78 | 64 | 32 | 44,5 |
| 40 - 1 ½" | 95 | 88 | 73 | 38 | 53 |
| 50 - 2" | 100 | 102 | 92 | 48 | 63 |
| 65 - 2 ½" | 110 | 122 | 105 | 60 | 75,5 |
| 80 - 3" | 120 | 138 | 127 | 74 | 91 |
| 100 - 4" | 130 | 158 | 158 | 102 | 120 |
