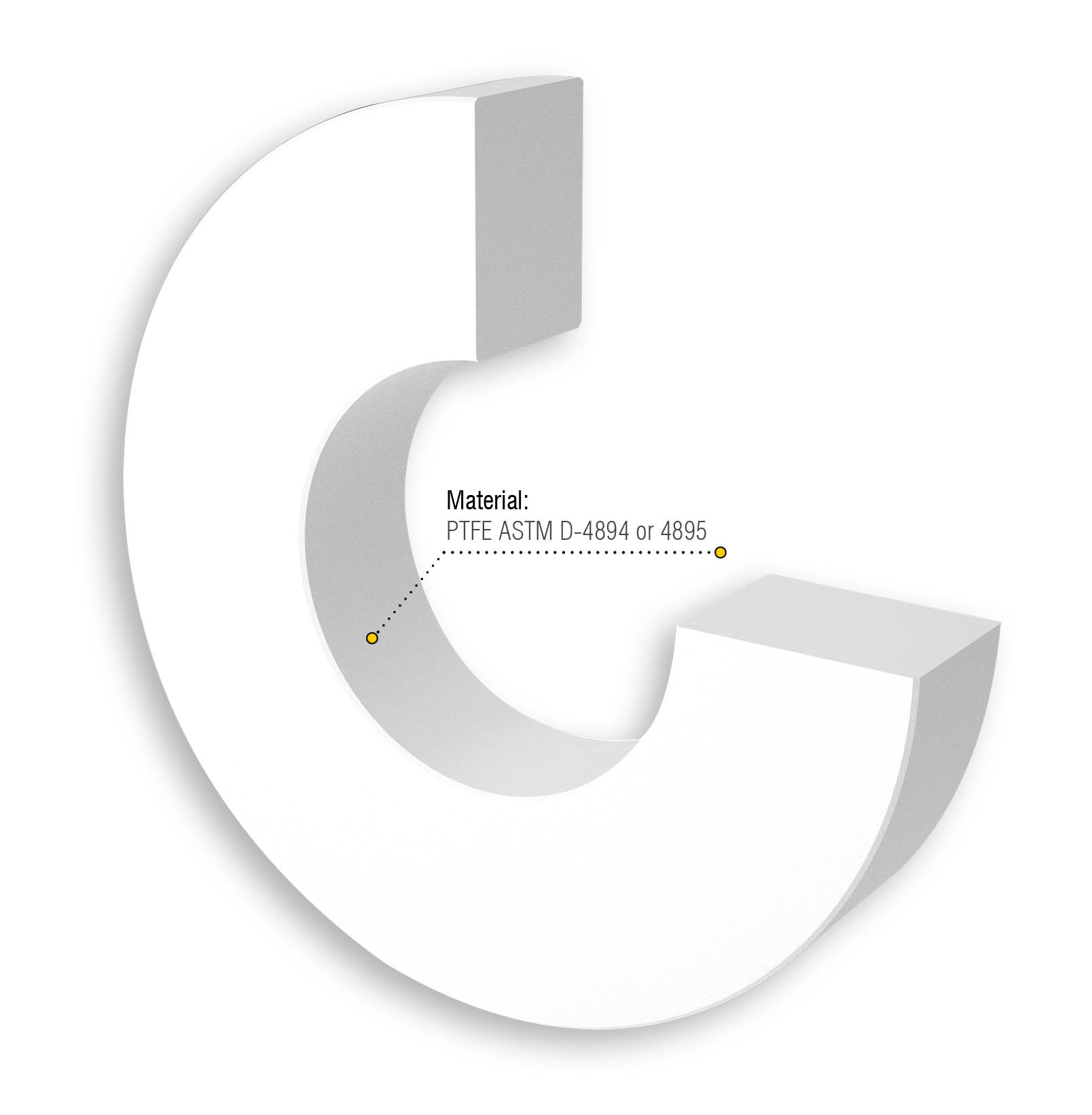

    PTFE Solid Spacer Type F

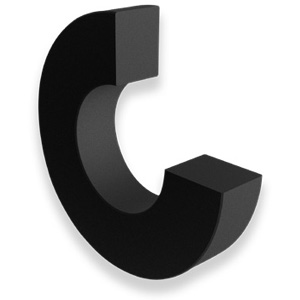

DIFLINE COLORS

PTFE Solid Spacer Type F
Data Sheet: D2-56

PTFE Solid Spacer Type F

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

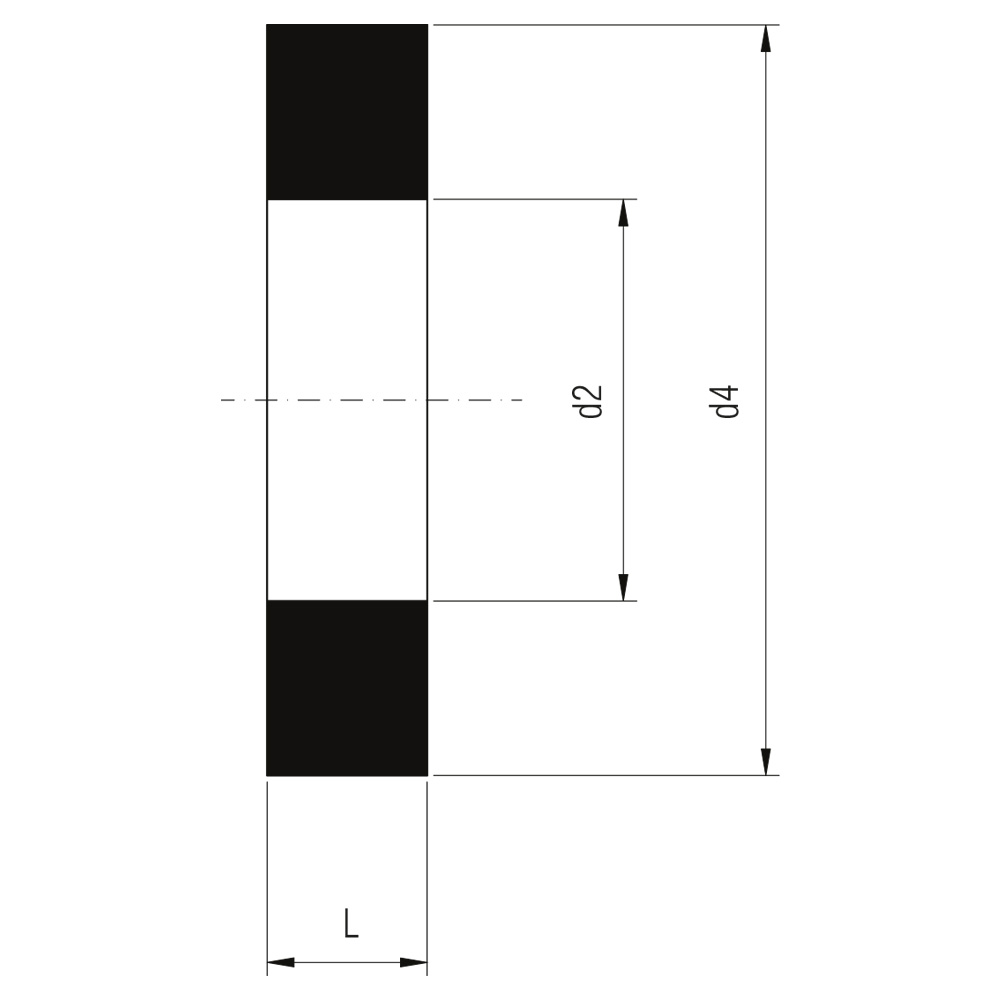

DN L max. mm d2 mm d4 mm Weight Kg
15 300 14 45 0,1
20 300 16 58 0,1
25 300 22 68 0,2
32 300 31 78 0,25
40 300 37 88 0,3
50 300 48 102 0,4
65 300 64 122 0,5
80 300 76 138 0,6
100 300 101 158 0,75
125 300 125 188 1,1
150 300 153 212 1,4
200 300 201 268 2,0
250 300 254 320 3,2
300 300 303 370 4,0
350 300 333 430 4,5
400 300 382 482 5,2
450 300 430 532 6,1
500 300 480 585 7,2
Technical Specifications of the Difline Products
Pipe dimensions e
flanges according to DIN
Fittings dimensions
according to DIN
Operational
conditions
Power
Tightening
Finish
Packaging marking
Resistance table
chemical materials*
Technical specifications of Difline products
