AISI 316L Flange Retainer
- Data Sheet: C2-55
AISI 316L Flange Retainer - Diflon A1
Fitting
Description

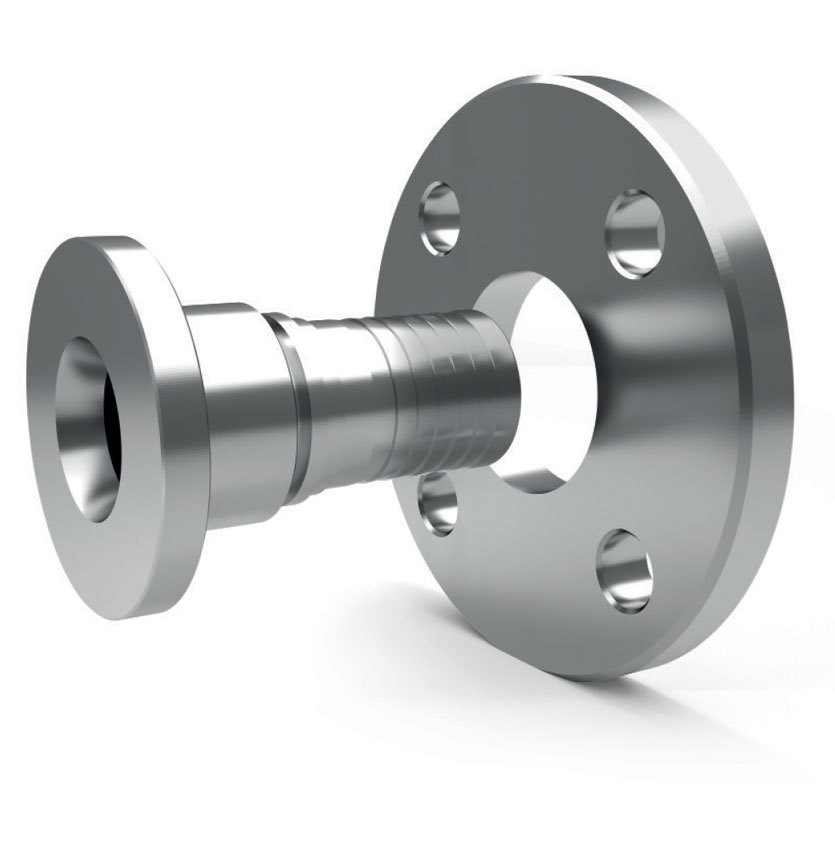

| The fitting is supplied without flange and it is used in heavy conditions of various sectors of industry to connect hoses with flanged equipments and plants. Standard construction material is AISI 316L. The flange can be provided in the Standard Specification and material according to customer requirements. |

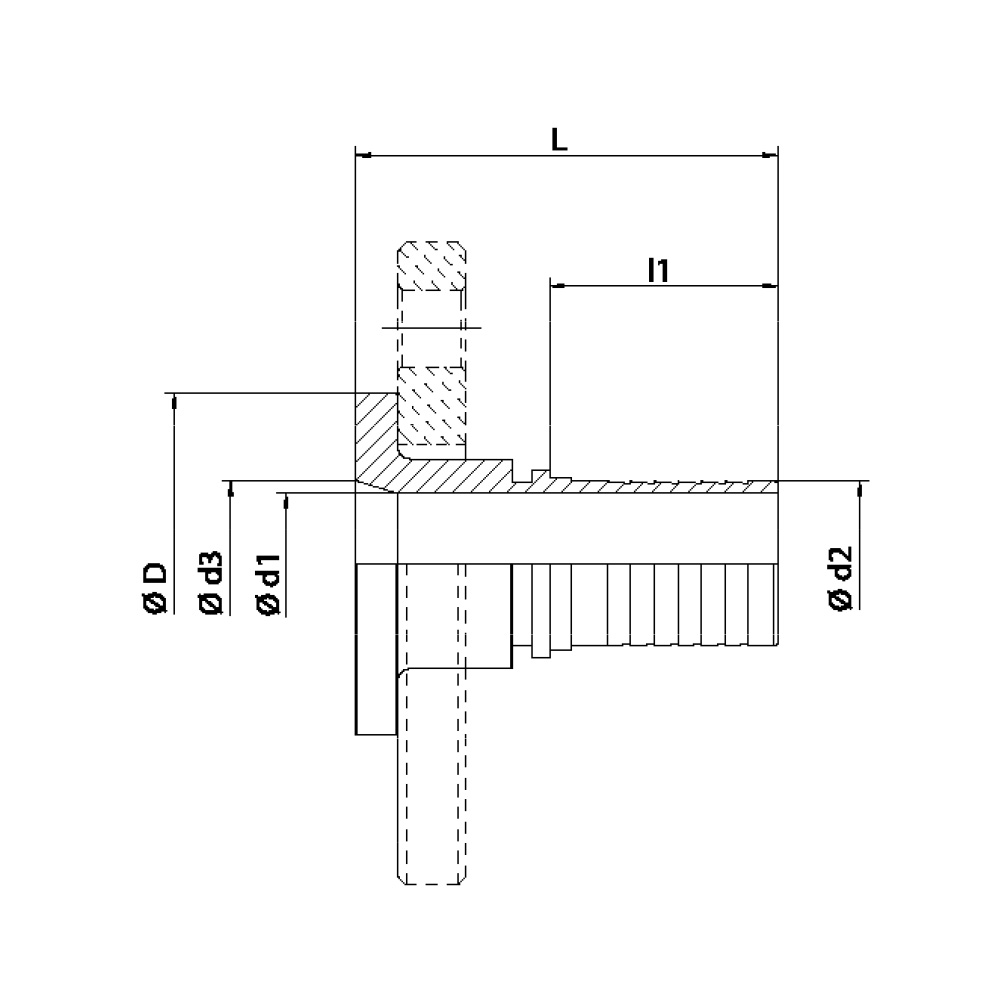

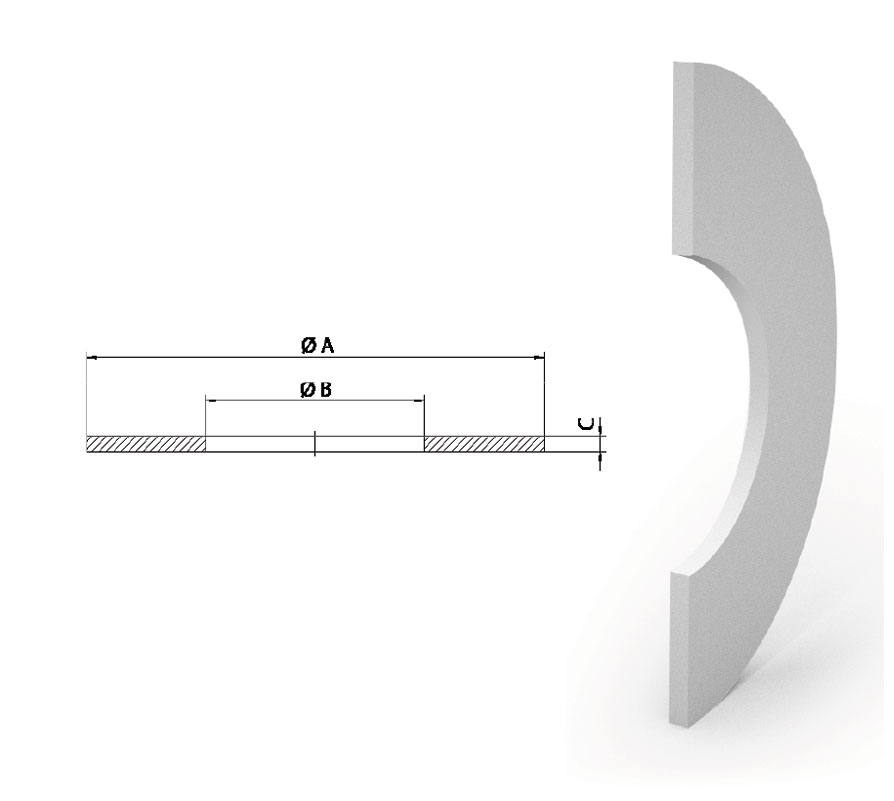

| DN | L | l1 | ØD | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|---|
| 15 - ½" | 60 | 30 | 35 | 9 | 13 | 12 |
| 20 - ¾" | 70 | 31 | 47 | 15 | 19,2 | 20 |
| 25 - 1" | 70 | 34 | 58 | 21 | 25,7 | 26 |
| 32 - 1 ¼" | 75 | 40 | 64 | 28 | 32,4 | 32 |
| 40 - 1 ½" | 80 | 51 | 75 | 33 | 38,5 | 40 |
| 50 - 2" | 90 | 62 | 92 | 45 | 51 | 50 |
| 65 - 2 ½" | 110 | 68 | 105 | 58 | 64 | 65 |
| 80 - 3" | 130 | 81 | 127 | 69 | 75 | 80 |
| 100 - 4" | 140 | 92 | 158 | 96 | 101 | 100 |
