2-Half Clamps Aisi 316 Din 2817 For Rubber Hoses
2-Half Clamps Aisi 316 Din 2817 For Rubber Hoses
Description
|
MATERIAL: AISI 316L |
 |
 |

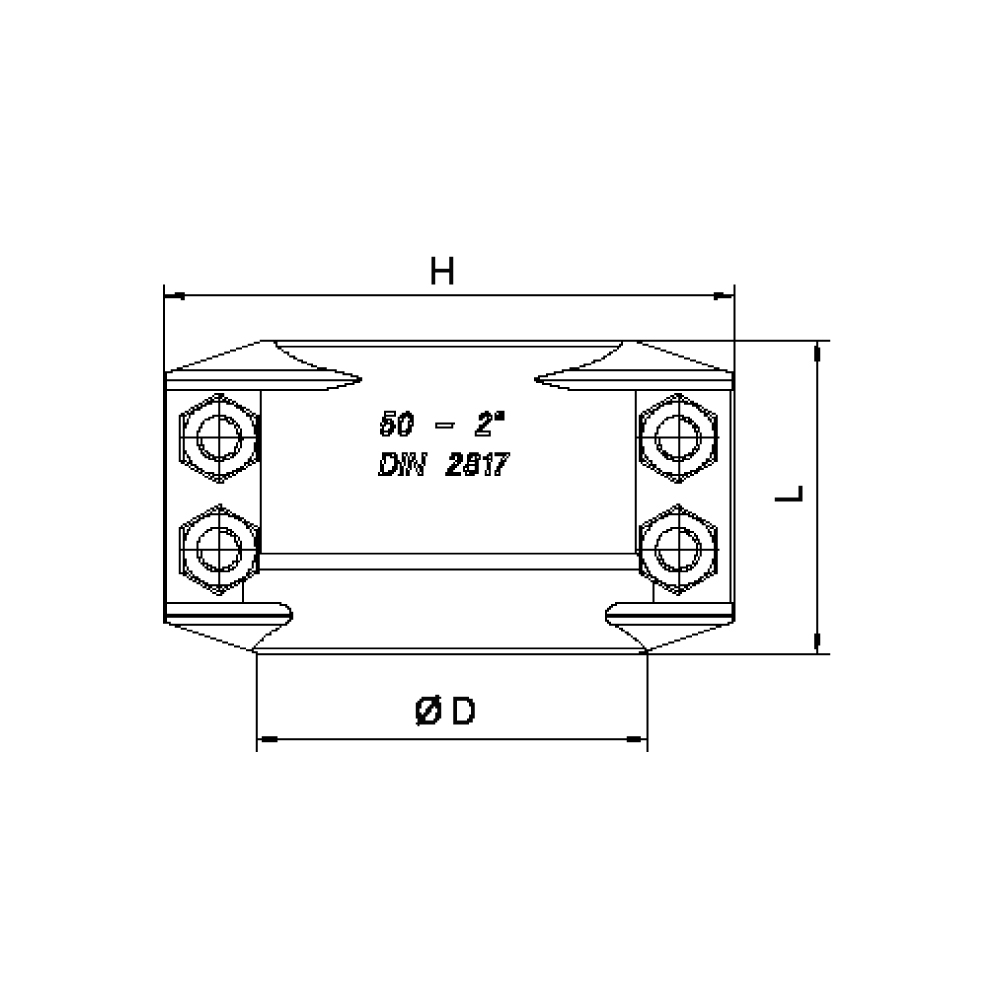

| DN | ØD | H | L | Bolts q.ty |
|---|---|---|---|---|
| 15 - ½" | 22-24 | 56 | 50 | 4xM6x20 |
| 20 - ¾" | 30-33 | 65 | 50 | 4xM6x20 |
| 25 - 1" | 36-39 | 73 | 50 | 4xM6x20 |
| 32 - 1 ¼" | 43-46 | 75 | 50 | 4xM6x20 |
| 40 - 1 ½" | 50-52 | 83 | 50 | 4xM6x20 |
| 50 - 2" | 64-67 | 103 | 57 | 4xM8x25 |
| 65 - 2 ½" | 78-82 | 118 | 75 | 4xM8x25 |
| 80 - 3" | 89-93 | 131 | 77 | 4xM8x25 |
| 100 - 4" | 114-119 | 164 | 120 | 4xM10x40 |
