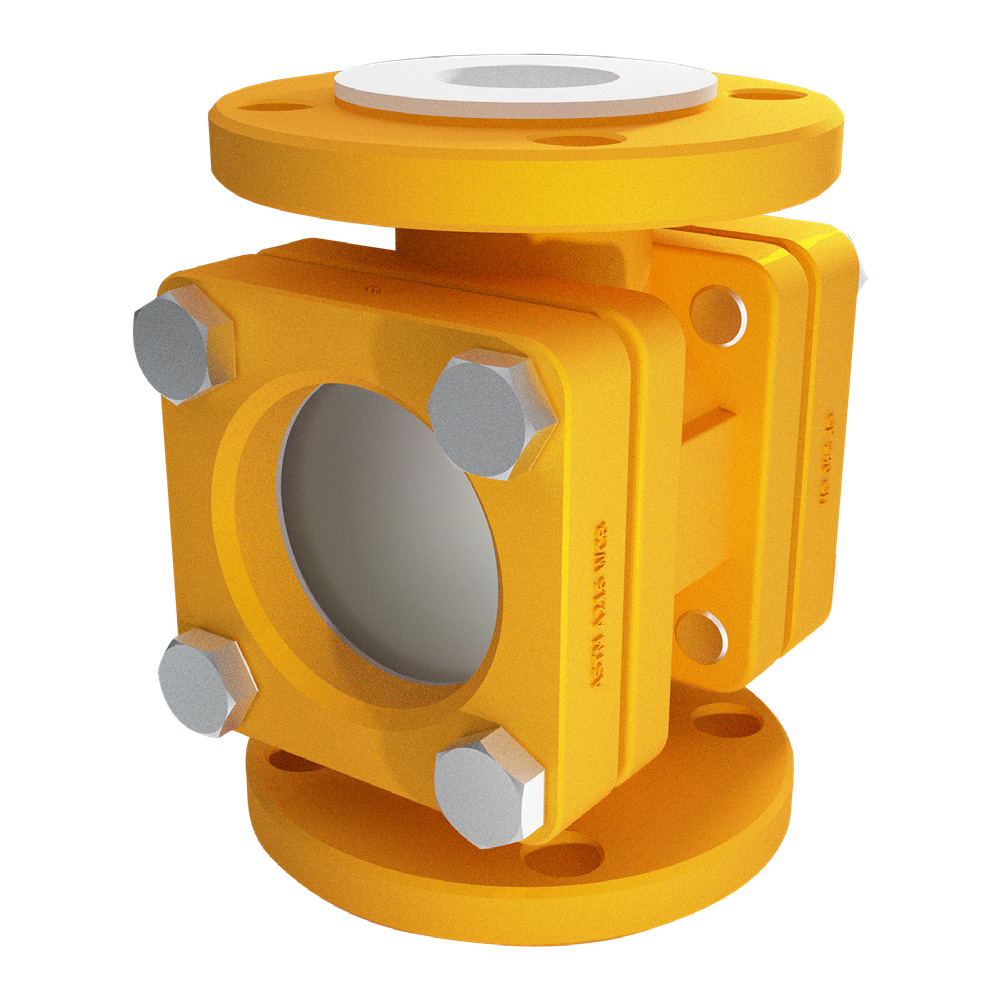

Bull’s Eye Sight Indicator in PFA DIN

Data Sheet: D3-74

Bull’s Eye Sight Indicator in PFA

Standard Supply

Features

Design:

DIN 2848/2874
Flange: 2 fixed

Range:

DN 25 - DN 400

Version A:

body: ASTM A 106 GR. B
flange: ASTM A 105
glass: DIN 7080
Cast Steel: ASTM A216
Grade WCB

Version F:

fusion: GP240GH

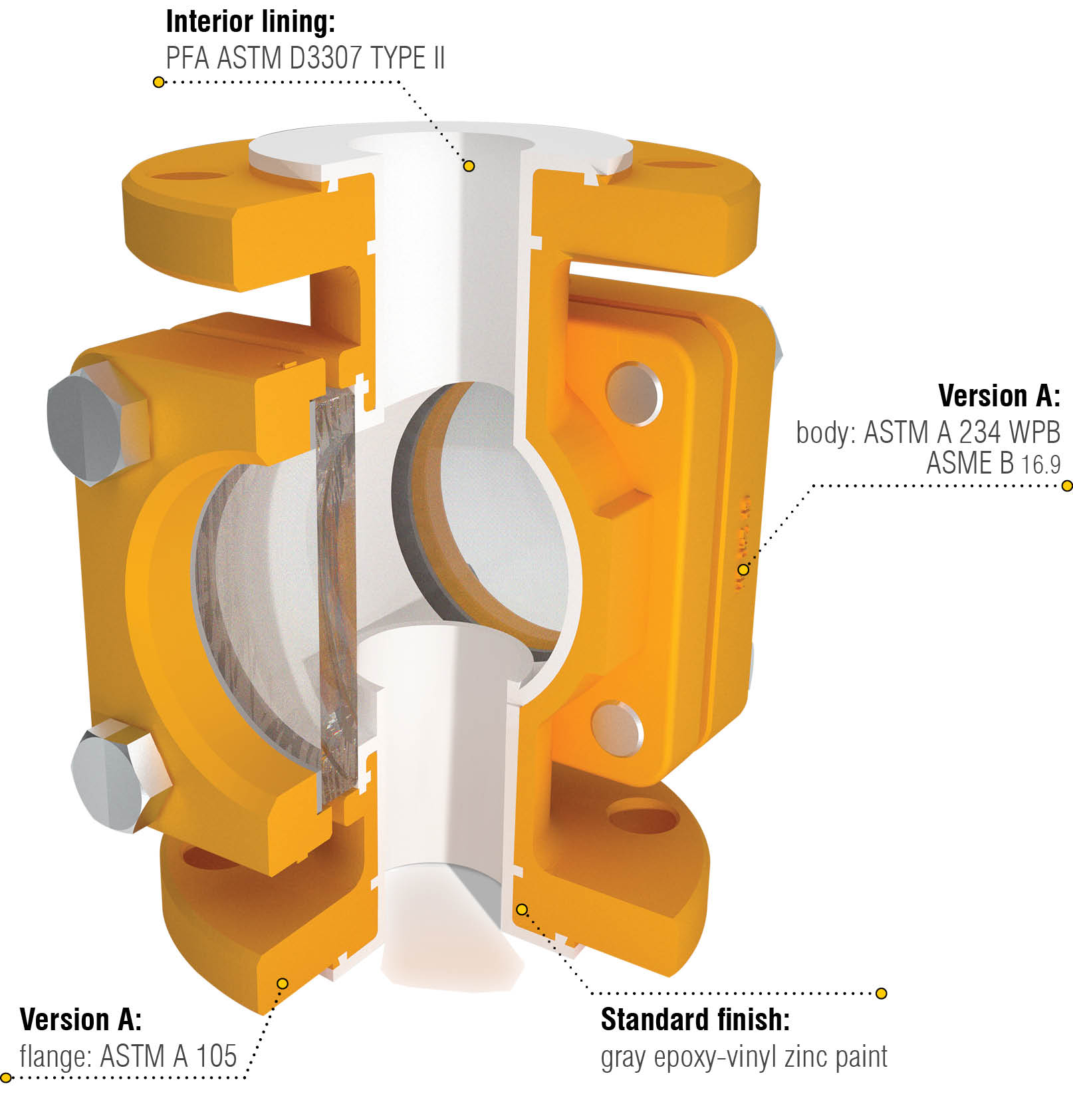

Interior Lining:

PFA

Gasket:

Diflex

Materials:
1 PTFE ASTM D-4894
2 ASTM A 106 GR. B / ASTM A 216 WCB
3 ASTM A 105 / ASTM A 216 GR. WCB
4 Glass DIN 7080 / Sight glass
5 Diflex

Standard Finishing

gray epoxy-vinyl
zinc paint

Available on request

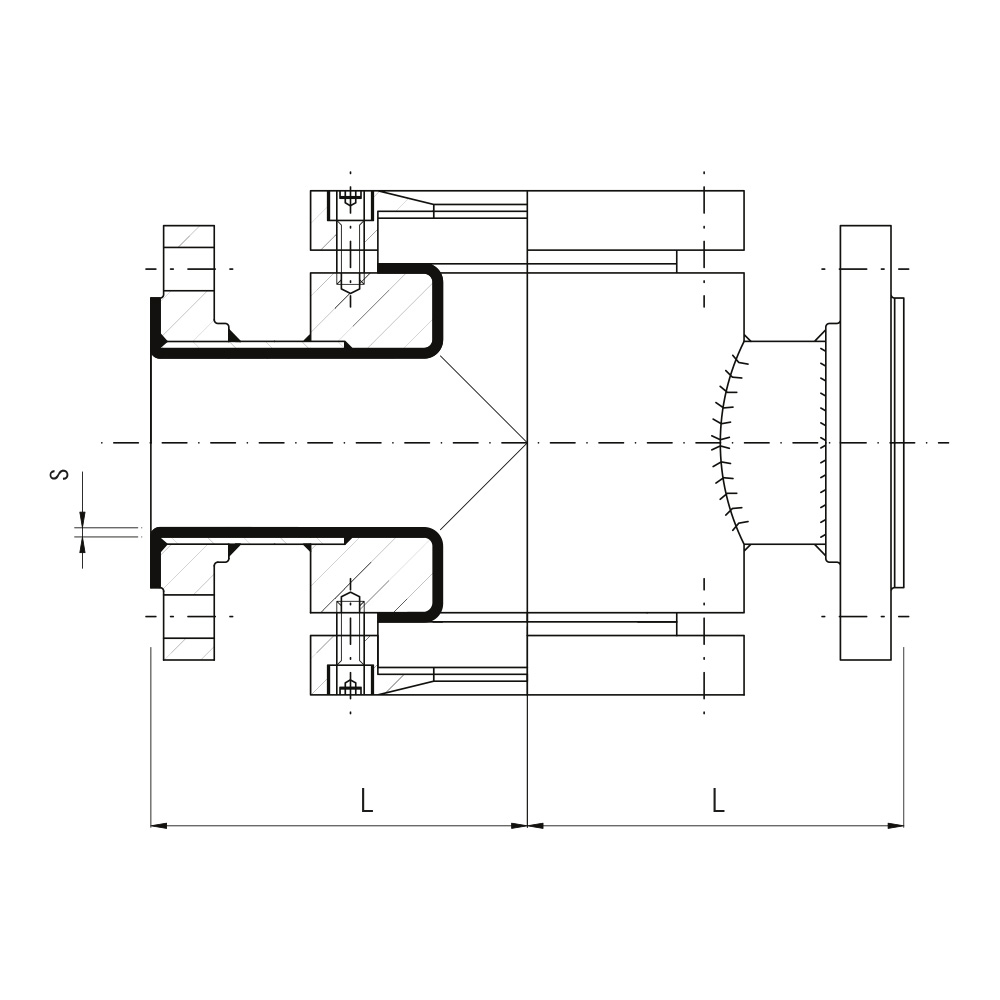

DN	L mm	s ± 10% mm	Weight kg
25	80	4,0	3,8
32	90	4,0	4,8
40	100	4,0	6,3
50	115	4,0	10,0
65	145	4,0	14,5
80	155	4,0	23,0
100	175	4,0	39,0
125	210	4,0	59
150	240	5	83
200	300	5	122
250	450	5	166
300	525	5	232
350	600	5	320
400	680	5	380
