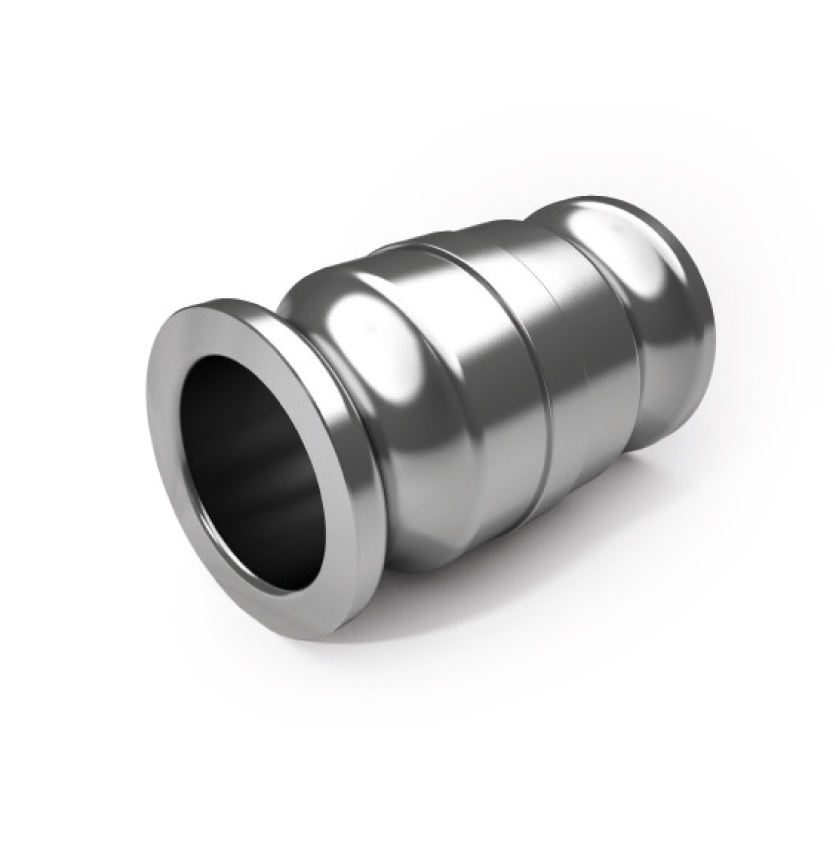

AISI 316L AD Type
- Data Sheet: C2-84
AISI 316L AD Type - EN 14420-7:2004 CAM & GROOVE - Diflon F11

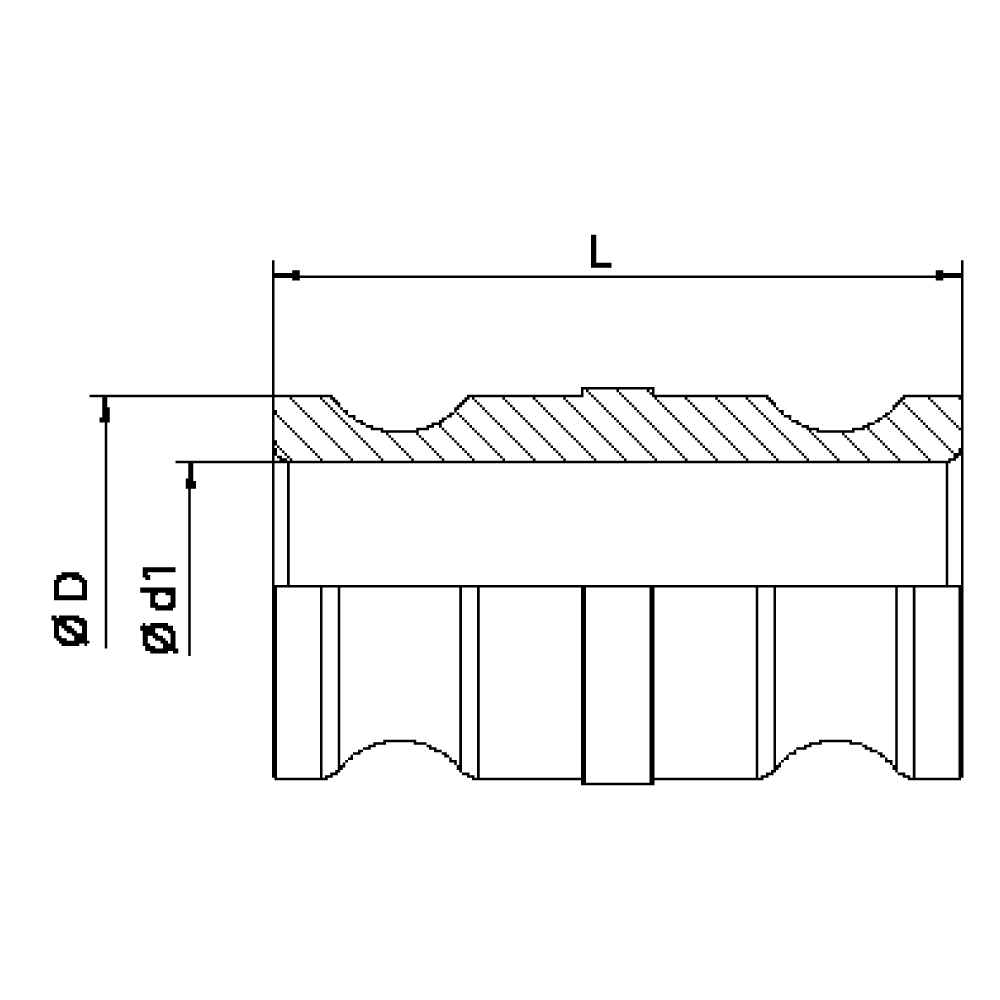

| DN | L | ØD | Ø d1 |
|---|---|---|---|
| 15 - ½" | 70 | 24,5 | 13 |
| 20 - ¾" | 74 | 29 | 21 |
| 25 - 1" | 92 | 36,5 | 24 |
| 32 - 1 ¼" | 104 | 44,5 | 32 |
| 40 - 1 ½" | 108 | 53 | 38 |
| 50 - 2" | 128 | 63 | 48 |
| 65 - 2 ½" | 134 | 75,5 | 60 |
| 80 - 3" | 134 | 91 | 73 |
| 100 - 4" | 144 | 120 | 99 |
