PTFE Lined Elbows 90°

Data Sheet: D2-31

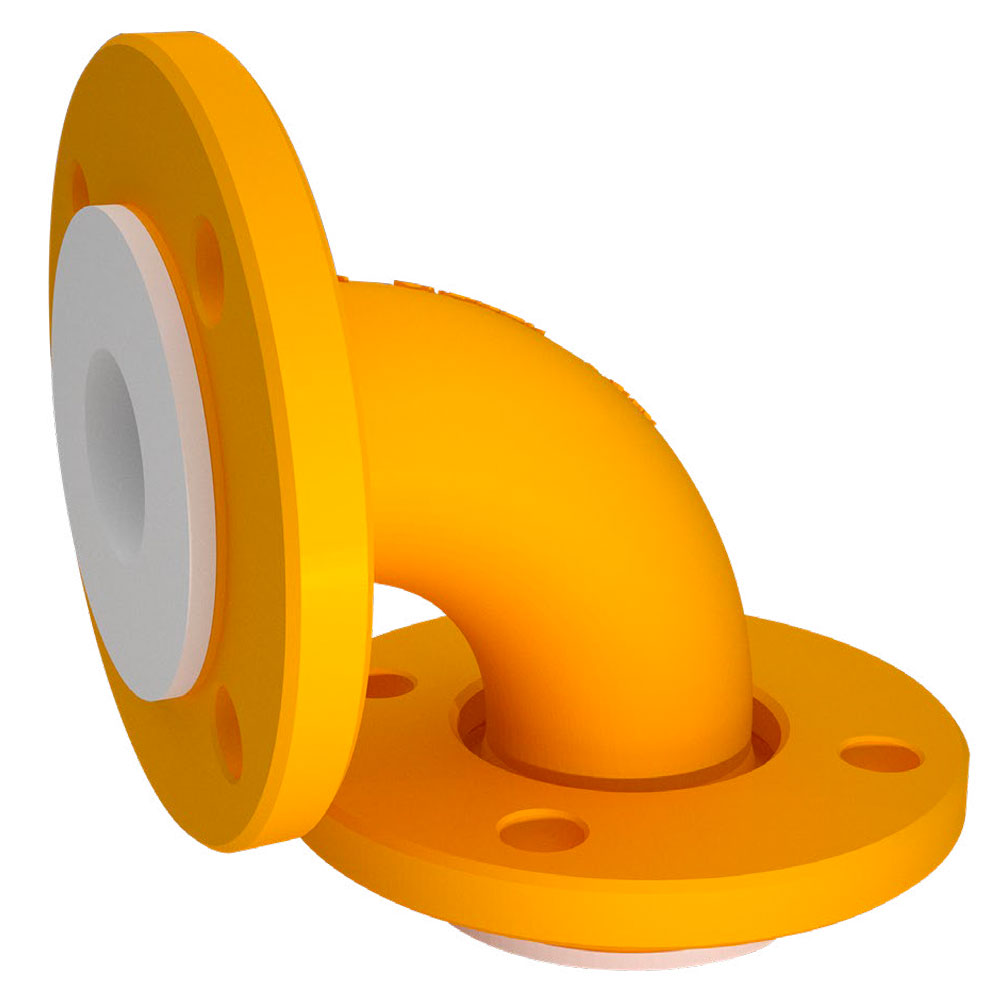

PTFE Lined Elbows 90°

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)

Standard Supply

Features

Design:

DIN 2848/2874
Flange: 1 fixed + 1 free

Range:

DN 15 - DN 500, PN 10

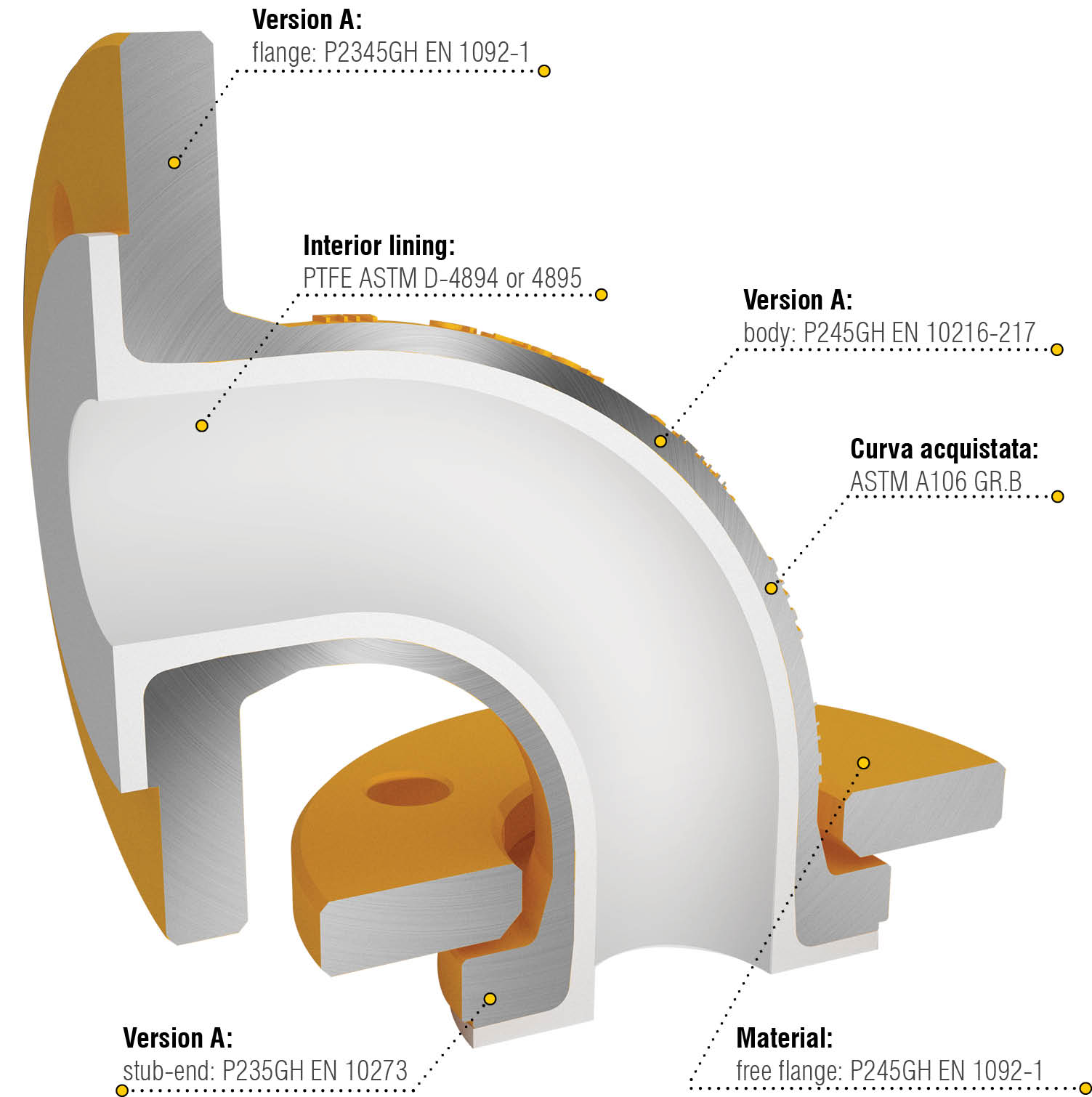

Version A:

With welded components
Body: P245GH EN 10216-217
Flange: P245GH EN 1092-1
Stub-end: P235GH EN 10273

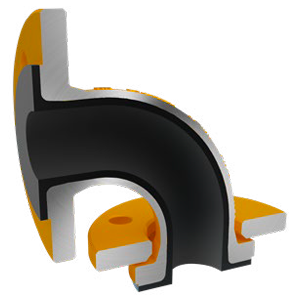

Version F:

Fusion: GP240GH

Interior Lining:

PTFE - PFA

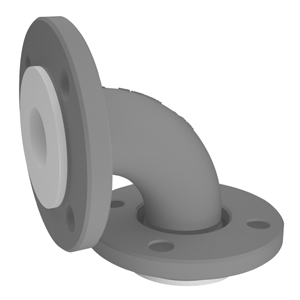

Standard finishing

gray epoxy-vinyl
zinc paint

Available on request

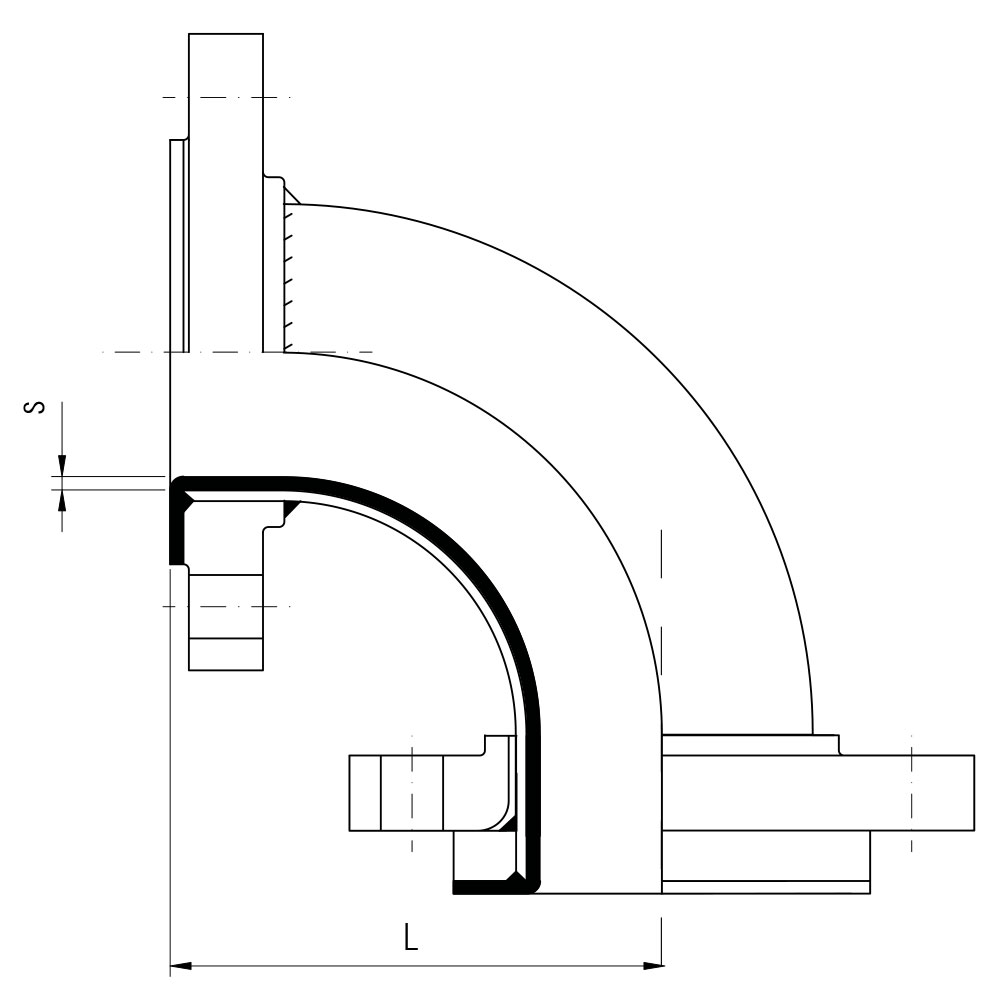

DN	L mm	s ± 10% mm	Weight kg
15	80	3,0	1,5
20	95	3,0	2,1
25	110	3,0	2,7
32	130	3,5	4,0
40	150	3,5	4,6
50	120	4,0	5,9
65	140	4,5	7,5
80	165	5,0	9,6
100	205	5,5	13,1
125	245	5,5	18,1
150	285	6	25,0
200	365	6,5	41,8
250	450	7,0	88,1
300	525	7,0	117,4
350	600	7,0	156,1
400	680	7,0	175
450	705	7,0	282
500	830	7,0	210
