AISI 316L PFA Lined SMS 1145 Male Retainer
- Data Sheet: C2-65
AISI 316L PFA Lined SMS 1145 Male Retainer - Diflon C3
Fitting

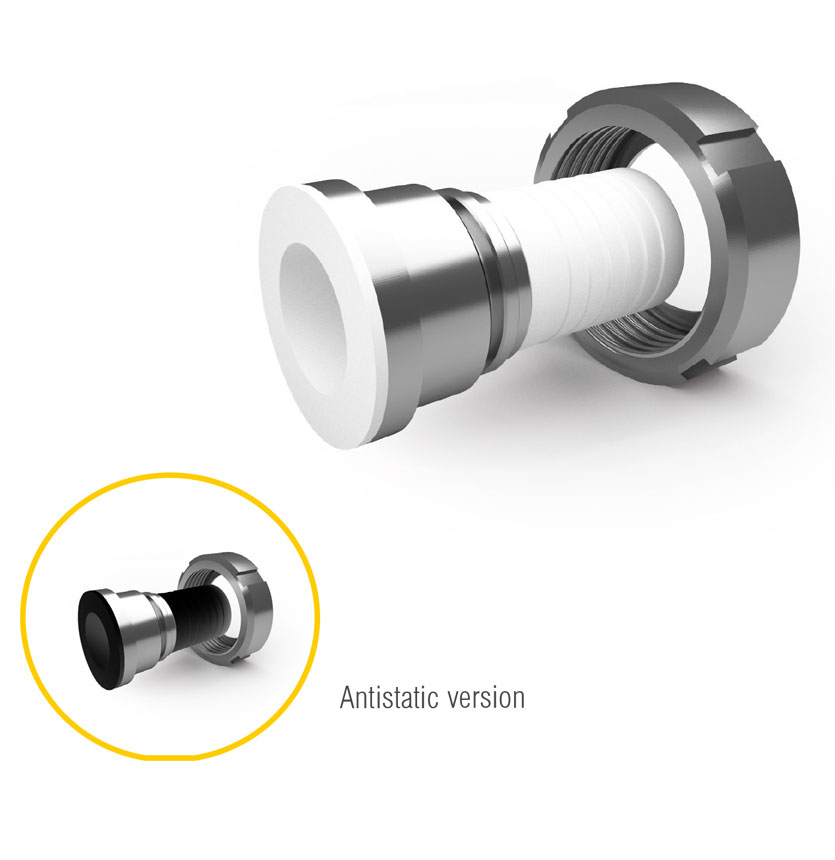

Description
| The fitting is supplied without ferrule and it is used in chemicals and food industries to connect hoses quickly and safely to equipments and plants. Standard construction material is AISI 316L/PFA. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. The DIN 405 threaded ferrule according to the Standard SMS 1145 can be supplied in AISI 304L and AISI 316L. |

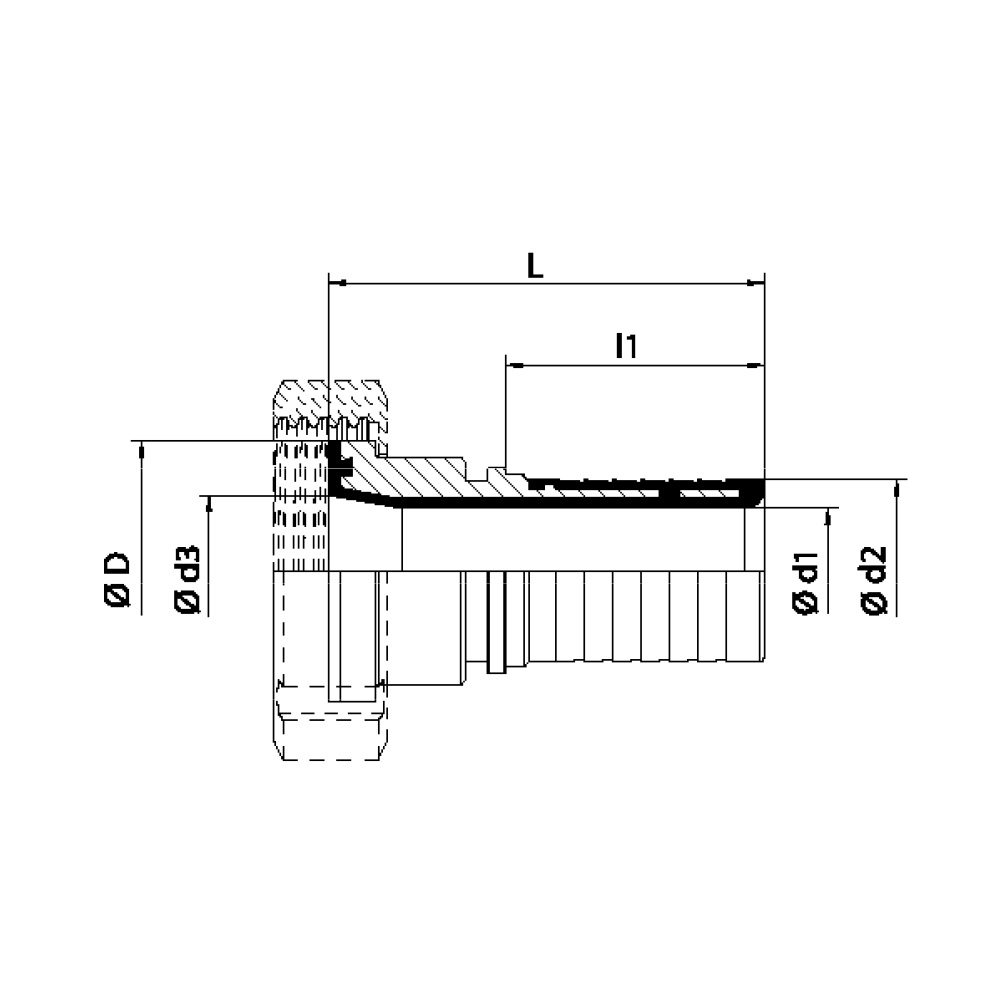

| DN | L | l1 | ØD | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|---|
| 25 - 1" | 80 | 34 | 32 | 16 | 25,7 | 17 |
| 40 - 1 ½" | 85 | 51 | 50 | 27 | 38,5 | 29 |
| 50 - 2" | 95 | 62 | 60 | 39 | 51 | 42 |
| 80 - 3" | 130 | 81 | 88 | 60 | 75 | 66 |
