AISI 316L DIN 11851 Female Flanged Connection
- Data Sheet:
C2-61

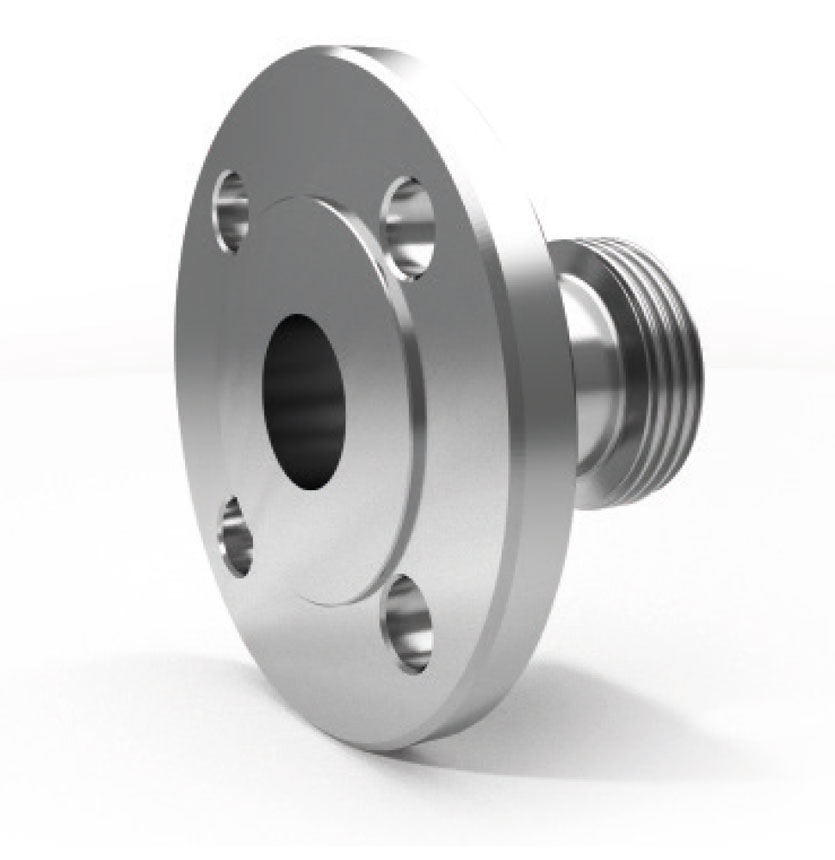

AISI 316L DIN 11851 Female Flanged Connection - Diflon B5
Fitting
Description
The fitting is used in chemicals and food industries to connect hoses to equipments and plants.
Standard construction material is AISI 316L. It is DIN 405 threaded.
The fittingr flange is made according to the Standard Specification required by the customer. |
Gasket
Recommended Gasket
| DIFLEX DIN 11851 gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar. |
Guarnizione DIN 11851
| DN |
Ø A |
Ø B |
C |
| 25 - 1" |
40 |
30 |
5 |
| 32 - 1 ¼" |
46 |
36 |
5 |
| 40 - 1 ½" |
52 |
42 |
5 |
| 50 - 2" |
64 |
54 |
5 |
| 65 - 2 ½" |
81 |
71 |
5 |
| 80 - 3" |
95 |
85 |
5 |
| 100 - 4" |
114 |
104 |
5 |

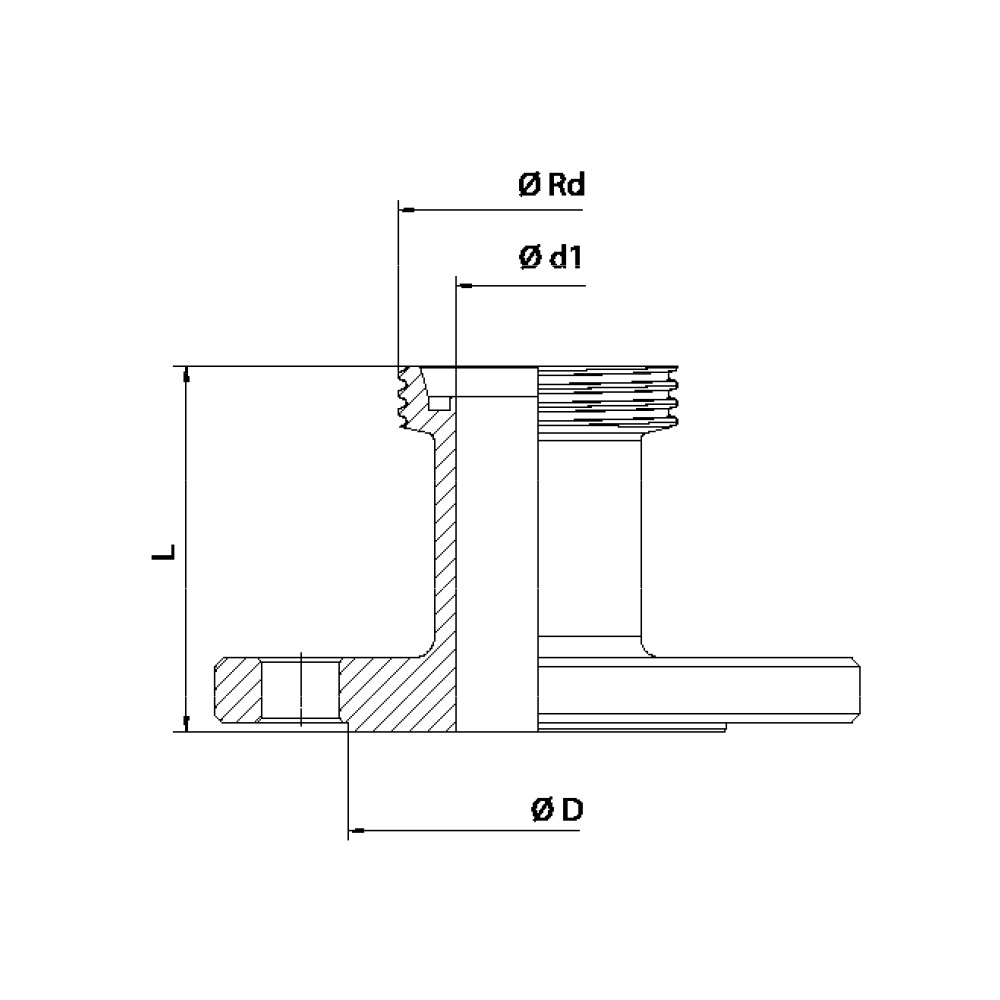

| DN |
L |
ØRd |
Ø D DIN |
Ø D ANSI |
Ø d1 |
| 25 - 1" |
80 |
52-6 |
68 |
51 |
26 |
| 32 - 1 ¼" |
85 |
58-6 |
78 |
64 |
32 |
| 40 - 1 ½" |
90 |
65-6 |
88 |
73 |
38 |
| 50 - 2" |
95 |
78-6 |
102 |
92 |
50 |
| 65 - 2 ½" |
100 |
95-6 |
122 |
105 |
66 |
| 80 - 3" |
110 |
110-4 |
138 |
127 |
81 |
| 100 - 4" |
120 |
130-4 |
158 |
158 |
100 |
