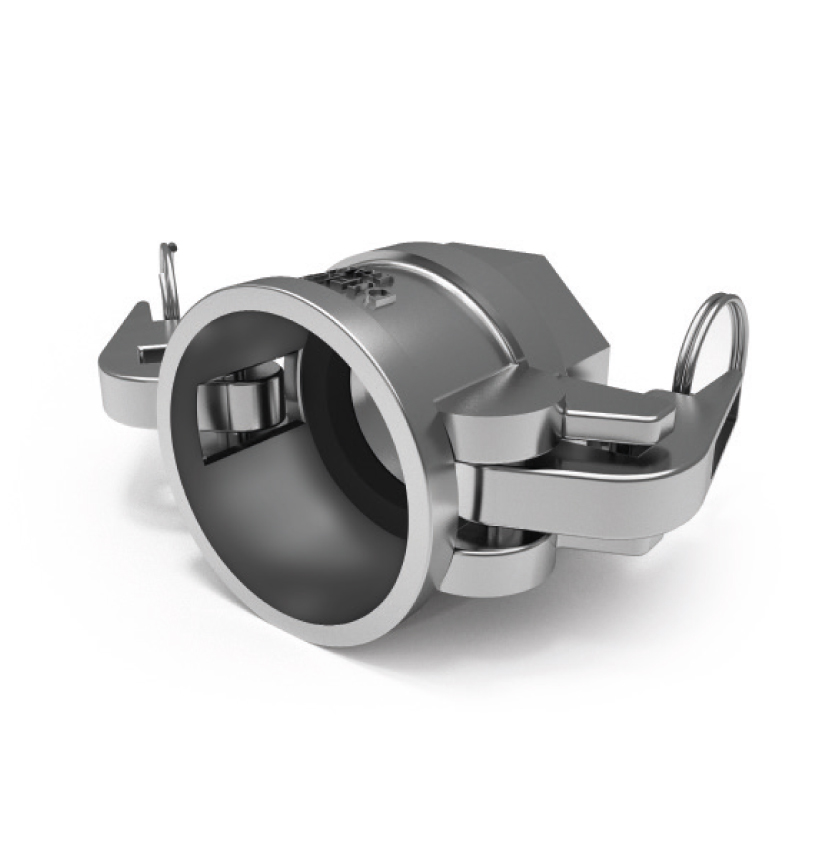

AISI 316L Selflock D Type
- Data Sheet: C2-86
AISI 316L Selflock D Type - EN 14420-7:2004 CAM & GROOVE - Diflon F13
Fitting
Description
| The fast fitting is used in chemical, pharmaceutical and food industries. The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of fitting from the other ones. The standard construction material is AISI 316L. It is equipped with self-locking safety levers that inhibit the accidental opening of the fitting. Internal BSP/GAS threaded end. |

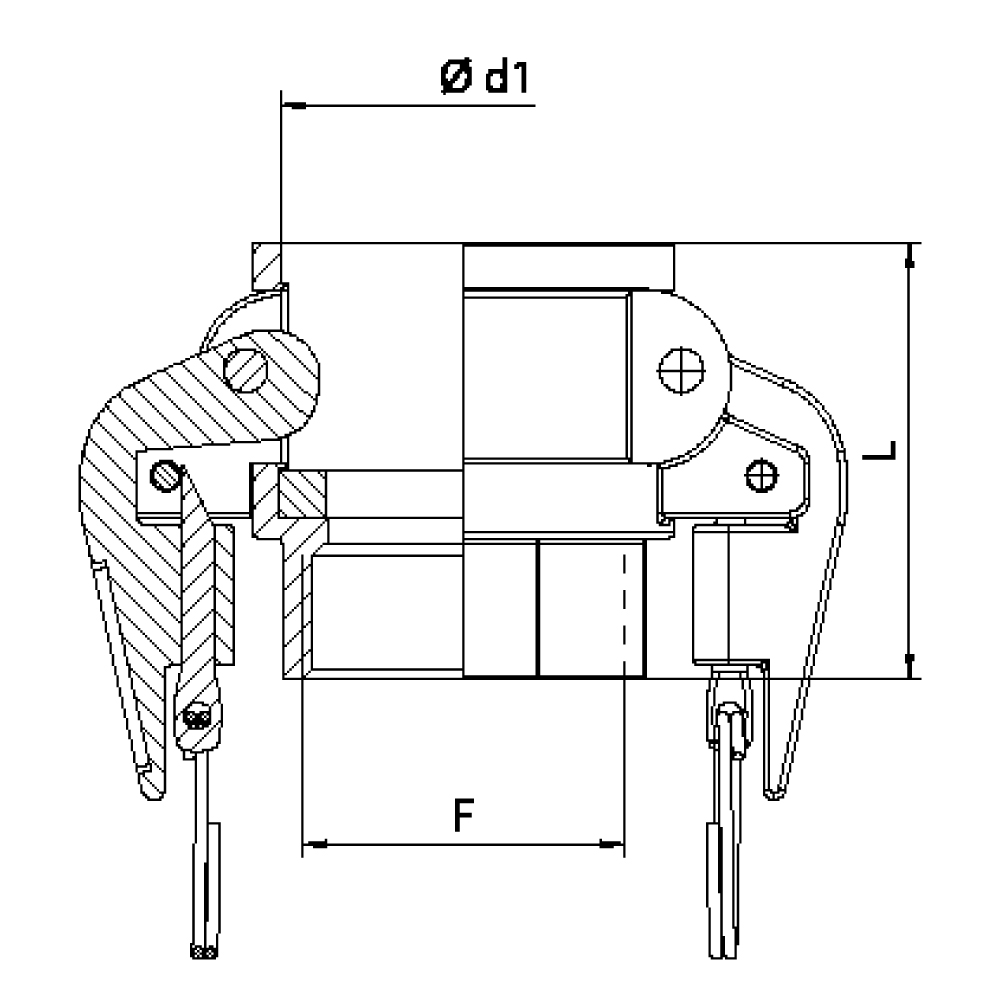

| DN | L | Ø d1 | F |
|---|---|---|---|
| 15 - ½" | 50 | 25,5 | ½" |
| 20 - ¾" | 50 | 30 | ¾" |
| 25 - 1" | 58 | 37,5 | 1" |
| 32 - 1 ¼" | 64 | 45,5 | 1 ¼" |
| 40 - 1 ½" | 68 | 54 | 1 ½" |
| 50 - 2" | 75 | 64 | 2" |
| 65 - 2 ½" | 77 | 76,5 | 2 ½" |
| 80 - 3" | 87 | 92 | 3" |
| 100 - 4" | 95 | 121 | 4" |
