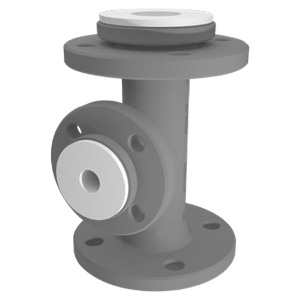

PTFE - PFA Reducing Tee

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)

Standard Supply

Features

Design:

DIN 2848/2874
Flange: 1 fixed + 2 free

Range:

DN 15 - DN 600, PN 10

Version A:

With welded components
body: P245GH EN 10216-217
flange: P245GH EN 1092-1

Version F:

fusion: GP240GH

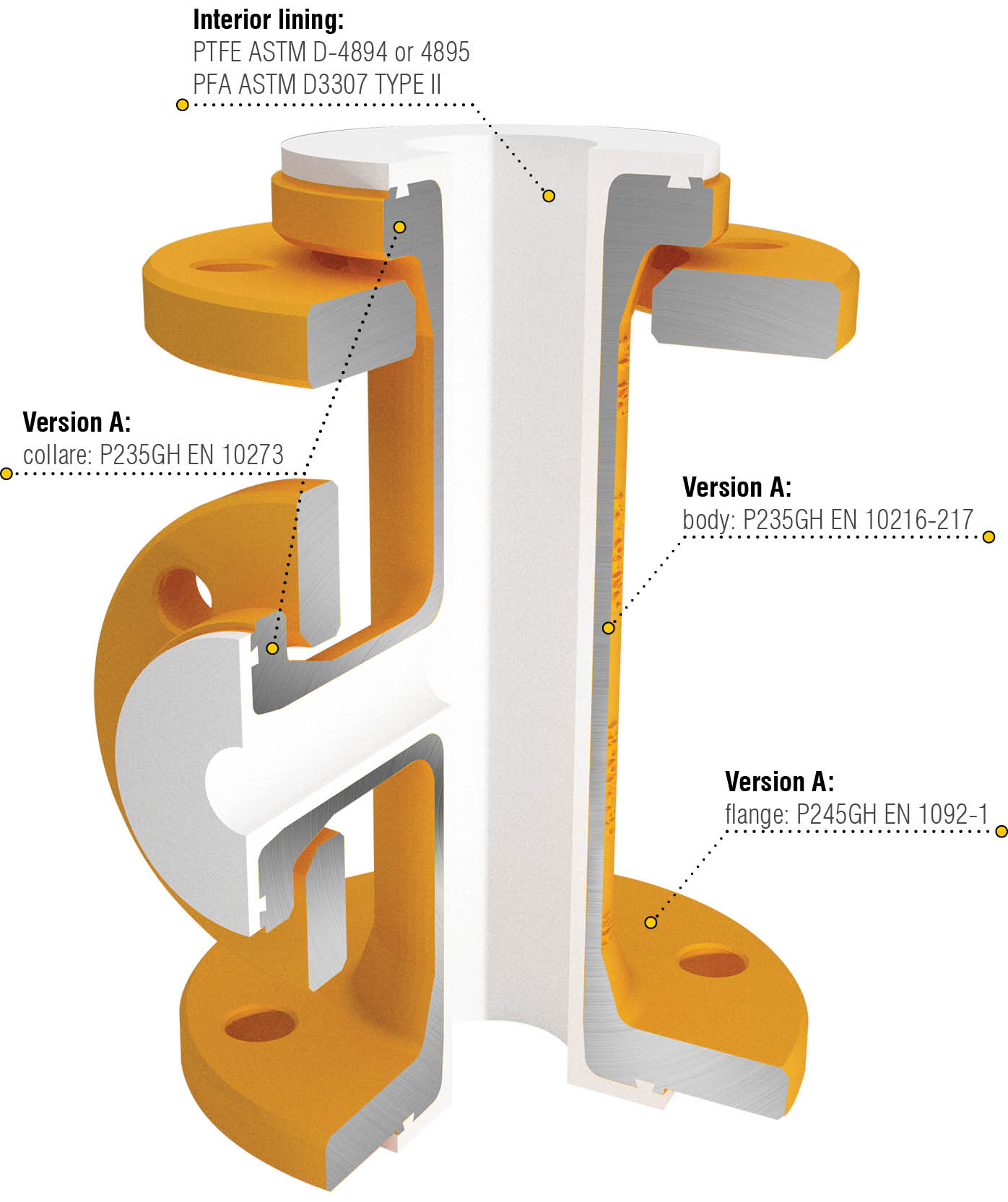

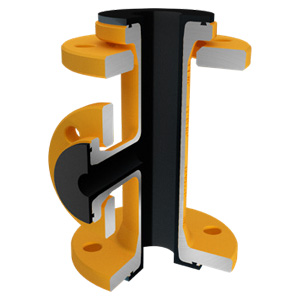

Interior Lining:

PTFE
PFA

Standard finishing

gray epoxy-vinyl
zinc paint

Approvals and
Certifications

Quality and
Special Tests

Engineering
Services

Special
Supply

Stainless Steel
304L/316L
components

External
Finiture

Technical Specification

DN1	DN2	L1 mm	L2 mm	s ± 10% mm	Weight kg
20	15	95	80	4,0	3,1
25	15 20	110	80 95	4,0	3,7 3,9
32	20 25	130	100 110	4,0	4,4 5,2
40	15 20 25 32	150	80 100 110 130	4,0	5,3 5,5 5,7 6,0
50	15 25 32 40	120	80 110 130 150	4,0	8,8 9,3 9,5 9,8
65	25 32 40 50	140	110 130 150 120	4,0	14,0 14,0 14,7 15,5
80	25 40 50 65	165	110 150 120 140	4,0	19,7 20,4 20,9 21,8
100	25 40 50 65 80	205	110 150 120 140 165	4,5/4,0	31,4 33,3 34,1 35,0 36,0
125	65 80 100	245	140 165 205	5,0	49,0 52,0 55,0
150	80 100 125	285	165 205 245	6,0	56,2 77,0 80,0
200	100 125 150	365	205 245 285	6,0	83,0 125 130
250	150 200	450	285 365	6,5	156 161
300	150 200 250	525	285 365 450	6,5	165 218 222
350	150 200 250 300	600	285 365 450 525	6,5	205 294 300 308
400	200 250 300 350	680	365 450 525 600	6,5	292 356 362 370
