Data Sheet: C1-33

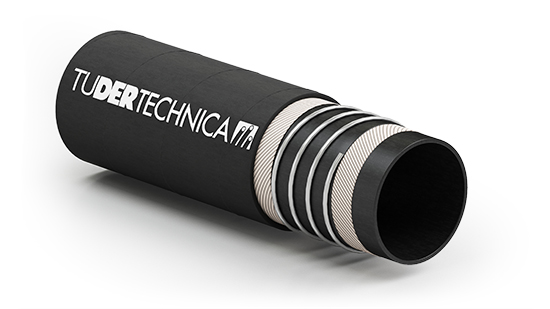

Tuchem® Viton®

Tuchem Viton

Tuchem Viton

Suction and delivery hose designed according to EN 12115 standards for oil and petrol, aromatic content up to 50%. Tested and certified hose by BUREAU VERITAS for use in Atex area (Ex-Zone).

Description

Tube
NBR 1, black, conductive

Reinforcement
synthetic plies, galvanized wire helices, a/s wire to discharge static electricity

Cover
smooth, CR, black, conductive, cloth finish. Abrasion, ageing, ozone and oil resistant

Mark
transfer verde/bianco
TUCHEM® VITON®
embossed according to norm EN 12115 TUDERTECHNICA NBR1 EN12115:2011 DN SD PN 16 BAR Ω/T Q/Y

Technical Charateristc
Temperature range: -30°C / +100°C ( -22°F / +212°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (RNorm: EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,81	0,54	125	4,92
25	1,00	37	1,46	0,9	13	16	250	64	1000	1,01	0,68	150	5,91
32	1,25	44	1,73	0,9	13	16	250	64	1000	1,19	0,80	175	6,89
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,48	0,99	225	8,86
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,30	1,54	275	10,83
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,33	1,56	275	10,83
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	3,32	2,22	350	13,78
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,83	2,57	400	15,75
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,87	2,59	400	15,75
100	3,94	116	4,57	0,9	13	16	250	64	1000	5,01	3,36	550	21,65
102	4,00	118	4,65	0,9	13	16	250	64	1000	5,05	3,38	550	21,65

Data refer to ambient temperature (20°C).
