    PTFE - PFA Equal Crosses

DIFLINE COLORS

▶PTFE - PFA Equal Crosses
Data Sheet: D2-40

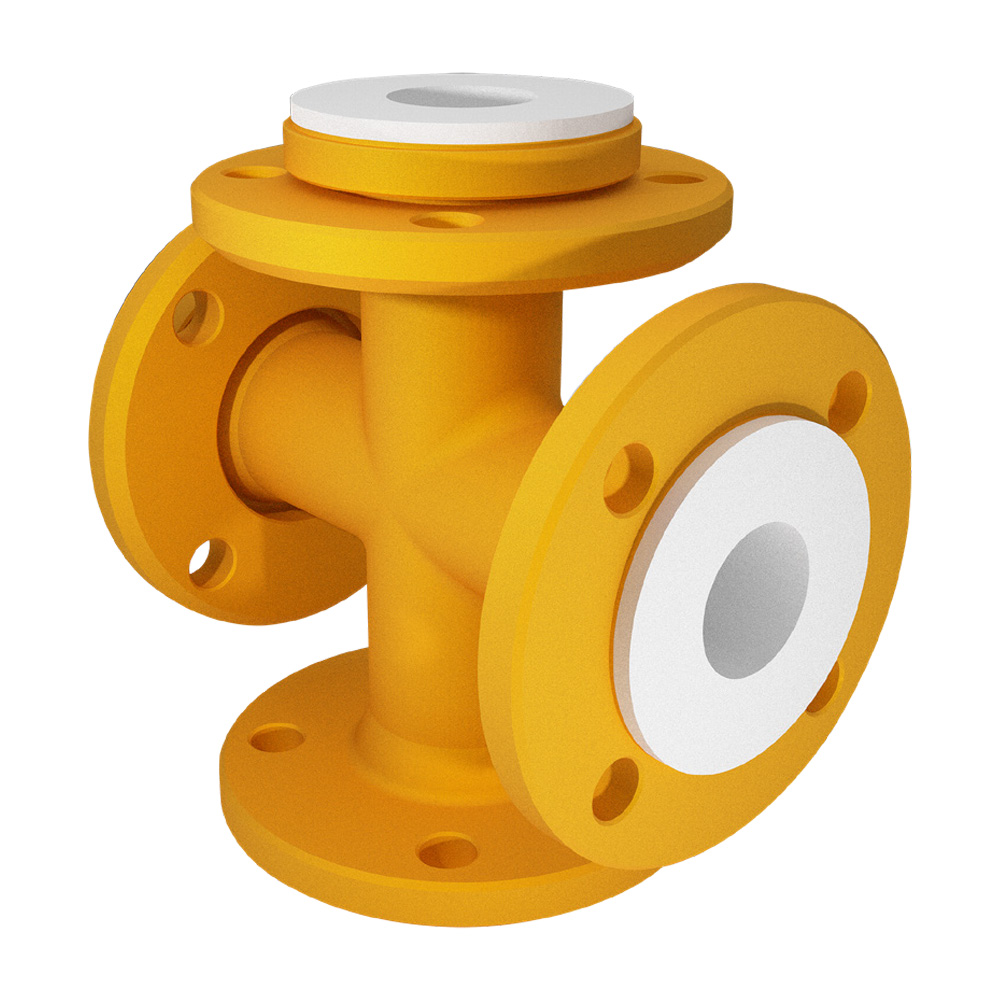

PTFE - PFA Equal Crosses

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

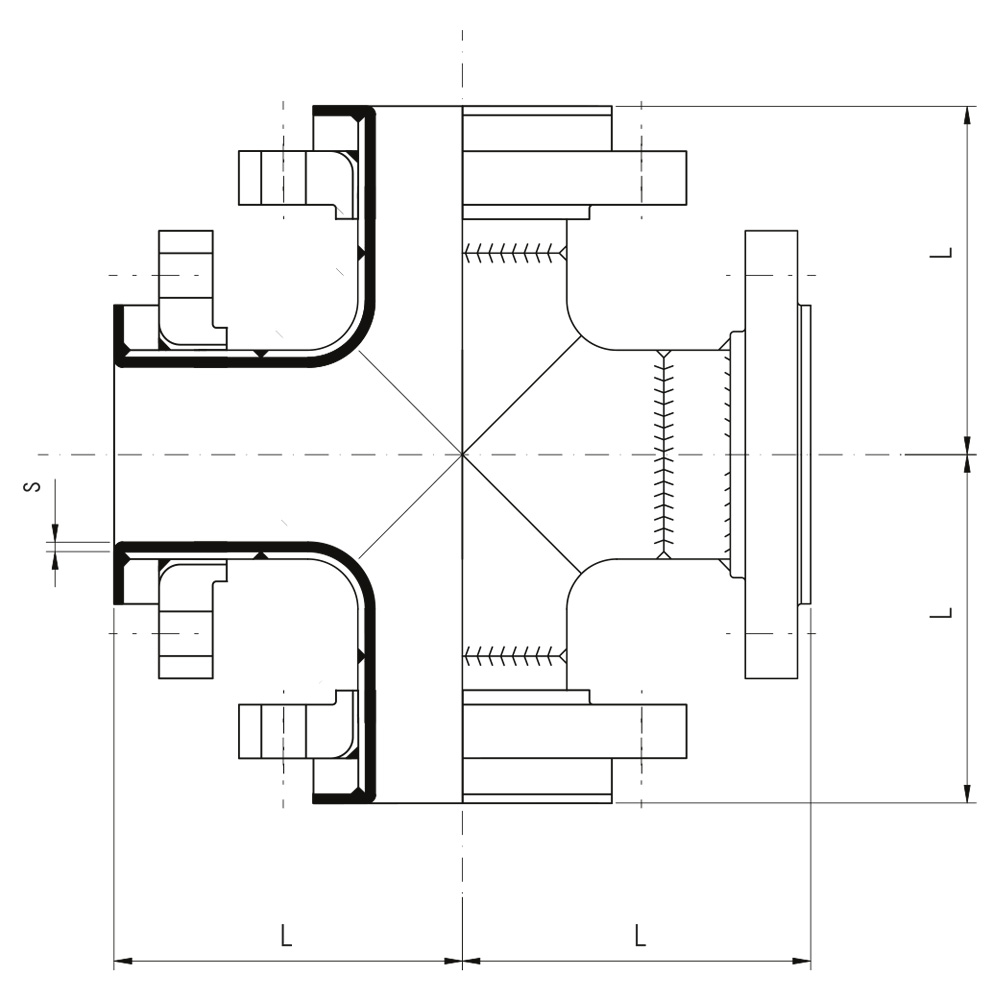

DN L mm s ± 10% mm Weight kg
15 80 3 2,5
20 95 3 3,2
25 110 3,5 3,6
32 130 3,5 4,7
40 150 4 6,1
50 120 4 9,7
65 140 4,5 13,5
80 165 4,5 21
100 205 5 36
150 285 6 97
150 285 6,0 97
200 365 7 126
250 450 7,5 198
300 525 8 286
350 600 8 385
400 680 8 485
450 680 8 530
500 500 8 560
600 500 8 740
Technical Specifications of the Difline Products
Pipe dimensions e
flanges according to DIN
Fittings dimensions
according to DIN
Operational
conditions
Power
Tightening
Finish
Packaging marking
Resistance table
chemical materials*
