Flexible Hose
|
Use / Application
Suction and delivery hose suitable in low and medium pressure applications which require flexibility and a tight bend radius. The choice of the best raw material guarantees minimum porosity. Focused branches are Chemical, petrochemicals, paints, steam, glues and adhesives, fuels, hydraulic oils, and any application under critical usage conditions.
Description

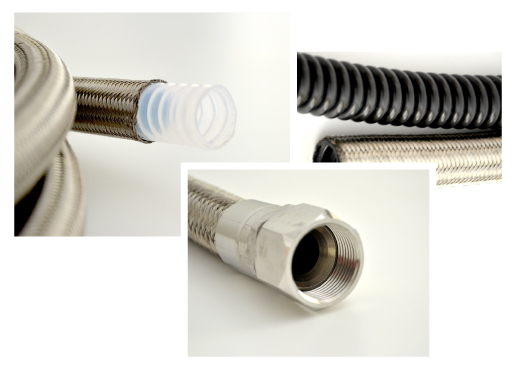

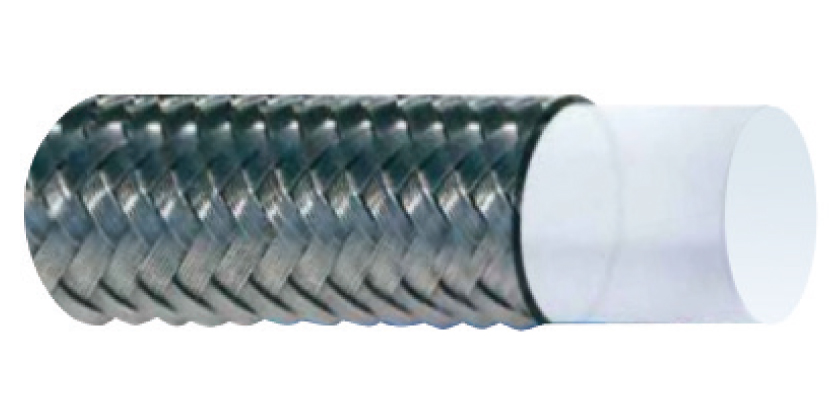

Tube: Virgin PTFE smooth hose
Cover: SS AISI 304 external wire braid
Option:
• Inner core made with conductive PTFE
• Heavy wall hoses
• AISI 316 external wire braid
• Double wire braid
• Special jacket made by thermoplastics or silicone
Technical characteristics
Temperature range: -70°C / +260°C
|

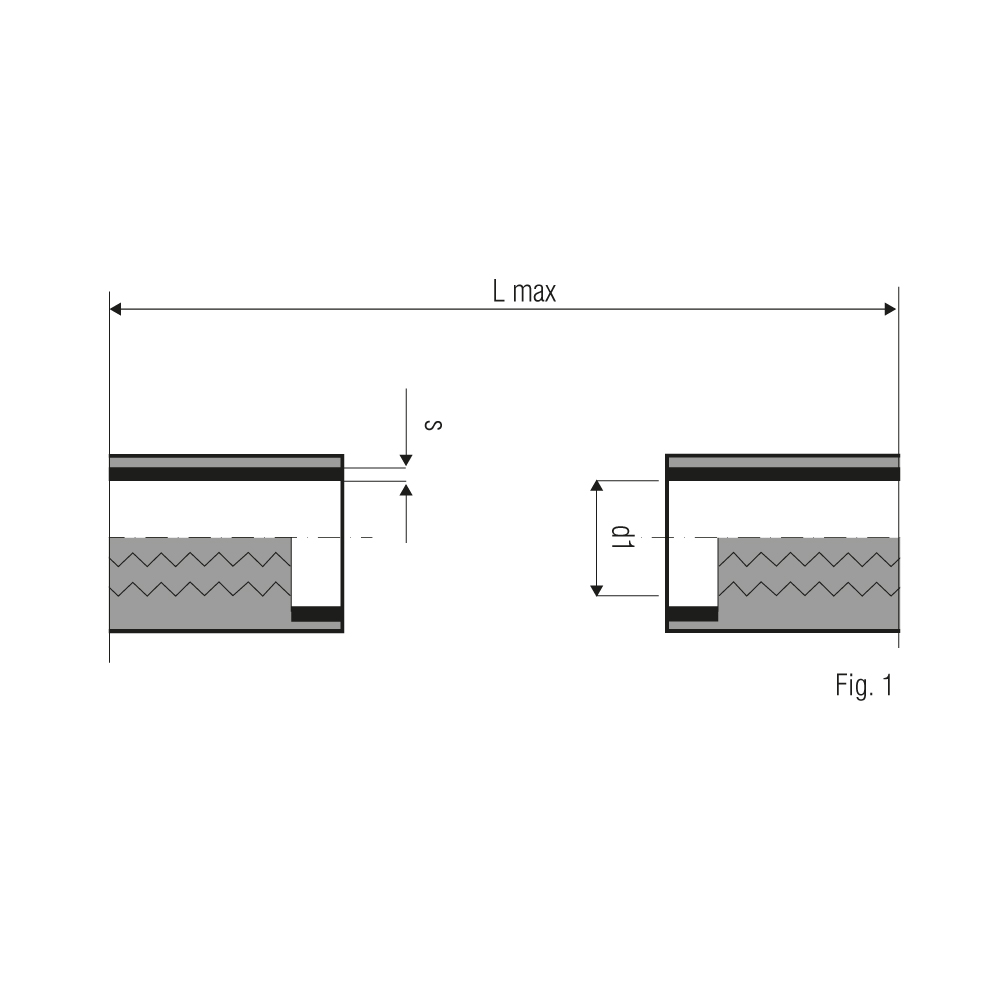

Technical Drawing and Table
Download PDF Catalog
| DN |
d1
min |
d1
max |
s±10% |
Minimum
bend
radius |
Max.
working
pressure |
Burst
pressure |
Admissible
vacuum
at 20°C/68°F |
Weight
of hose |
| DIN |
ANSI |
mm |
mm |
mm |
mm |
Bar 20°C |
mbar 20°C |
gr/m |
| - |
1/4” |
6,45 |
6,96 |
1 |
76 |
224 |
672 |
887 |
145 |
| 10 |
3/8” |
9,93 |
10,64 |
1 |
127 |
207 |
621 |
887 |
195 |
| 15 |
1/2” |
13 |
13,6 |
1 |
140 |
161 |
483 |
887 |
265 |
| - |
5/8” |
16,4 |
17,2 |
1,2 |
165 |
114 |
345 |
887 |
345 |
| 20 |
3/4” |
19,3 |
20,32 |
1,2 |
203 |
103 |
310 |
887 |
420 |
| 25 |
1” |
25,6 |
26,62 |
1,2 |
305 |
80 |
241 |
887 |
540 |
Esempi di raccordatura
|

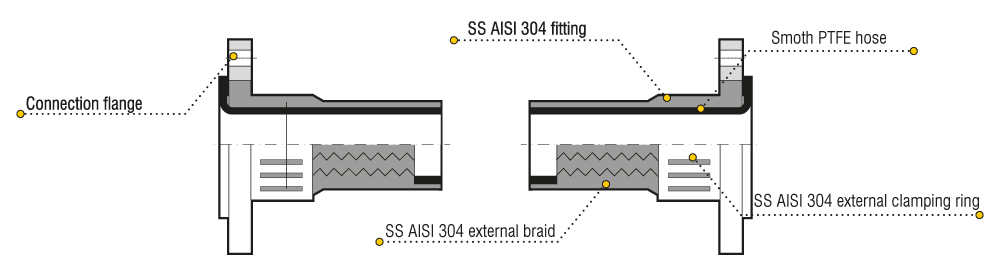

Examples of crimping
• Loose flanges
• DN 15 - DN 50 - DN 1/2”
• Flanges acc. to EN 1092-1
• Flanges acc. to ASME/ANSI B16.5
• Rated for -40°C/ -40°F to +230°C/ +440°F
|
θ THETA - PTFE SW - 304 BRAID / PTFE Hose With AISI 304 Braid
