Data Sheet: C1-38

Glidetech Dairy

Glidetech Dairy

Glidetech Dairy

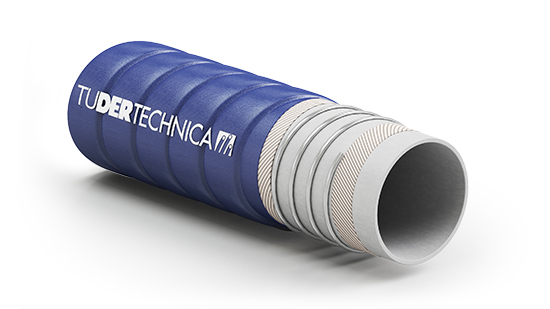

Extra flexible suction and delivery hose suitable for milk and milk by- products.

Description

Tube
NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN- Ministry of Health and Welfare Notice No.370,1959 and No.201,2006

Reinforcement
synthetic plies, galvanized wire helices

Cover
wide corrugated, blue, low friction material, non-marking when dragged on the floor, easy to clean, glossy. Abrasion, ageing, ozone, oil and chemical resistant

Sterilization
refer to guidelines for cleaning and sanitizing on Tudertechnica website

Marking
TUDERTECHNICA GLIDETECH® DAIRY

TECHNICAL CHARACTERISTICS
Temperature range: -40°C / +80°C ( -40°F / +176°F )
Norm:ISO 1307 for dimensional tolerances

Inside diameter		Theoretical outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,9	13	10	150	30	450	0,82	0,55	70	2,76
38	1,50	51,5	2,03	0,9	13	10	150	30	450	1,23	0,82	80	3,15
51	2,00	66	2,60	0,9	13	10	150	30	450	1,90	1,27	100	3,94
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,30	1,54	130	5,12
76	3,00	92	3,62	0,9	13	10	150	30	450	2,90	1,94	150	5,91
102	4,00	118	4,65	0,9	13	10	150	30	450	3,78	2,53	250	9,84

Data refer to ambient temperature (20°C). Other diameters, wall thickness, cover colours and pressure only on specific request.
