Data Sheet: C1-40

Milkflex®

Milkflex

Milkflex

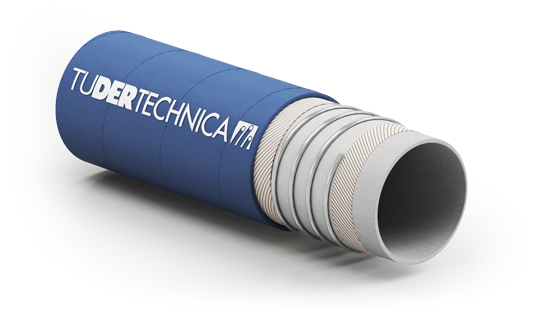

Light and flexible lorry collecting hose suitable for milk and milk by- products.

Description

Tube
NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN- Ministry of Health and Welfare Notice No.370,1959 and No.201,2006

Reinforcement
synthetic plies, galvanized wire helices

Cover
smooth, blue, cloth finish. Abrasion, ageing and ozone resistant

Sterilization
refer to guidelines for cleaning and sanitizing on Tudertechnica website

Marking
MILKFLEX®

TECHNICAL CHARACTERISTICS
Temperature range: -40°C / +80°C ( -40°F / +176°F )
Norm: ISO 1307 for dimensional tolerances

Inside diameter		Theoretical outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	36	1,42	0,9	13	6	90	18	270	0,72	0,48	75	2,95
32	1,25	43	1,69	0,9	13	6	90	18	270	0,88	0,59	95	3,74
38	1,50	50	1,97	0,9	13	6	90	18	270	1,20	0,80	115	4,53
51	2,00	63	2,48	0,9	13	6	90	18	270	1,54	1,03	150	5,91
63,5	2,50	75,5	2,97	0,9	13	6	90	18	270	1,98	1,33	190	7,48
76	3,00	90	3,54	0,9	13	6	90	18	270	2,76	1,85	230	9,06
102	4,00	116	4,57	0,9	13	6	90	18	270	3,78	2,53	300	11,81

Data refer to ambient temperature (20°C). Other diameters, wall thickness, cover colours and pressure only on specific request.
