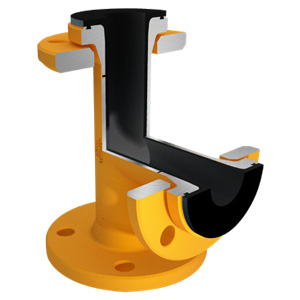

PTFE - PFA Equal Tee
PTFE - PFA Equal Tee / Design DIN 2448/2874 - Certified - 2014/68/EU (PED).
Standard Supply
Features
|
Design:
DIN 2848/2874Flange: 1 fixed + 1 free |
|
Range:
DN 15 - DN 600, PN 10 |
|

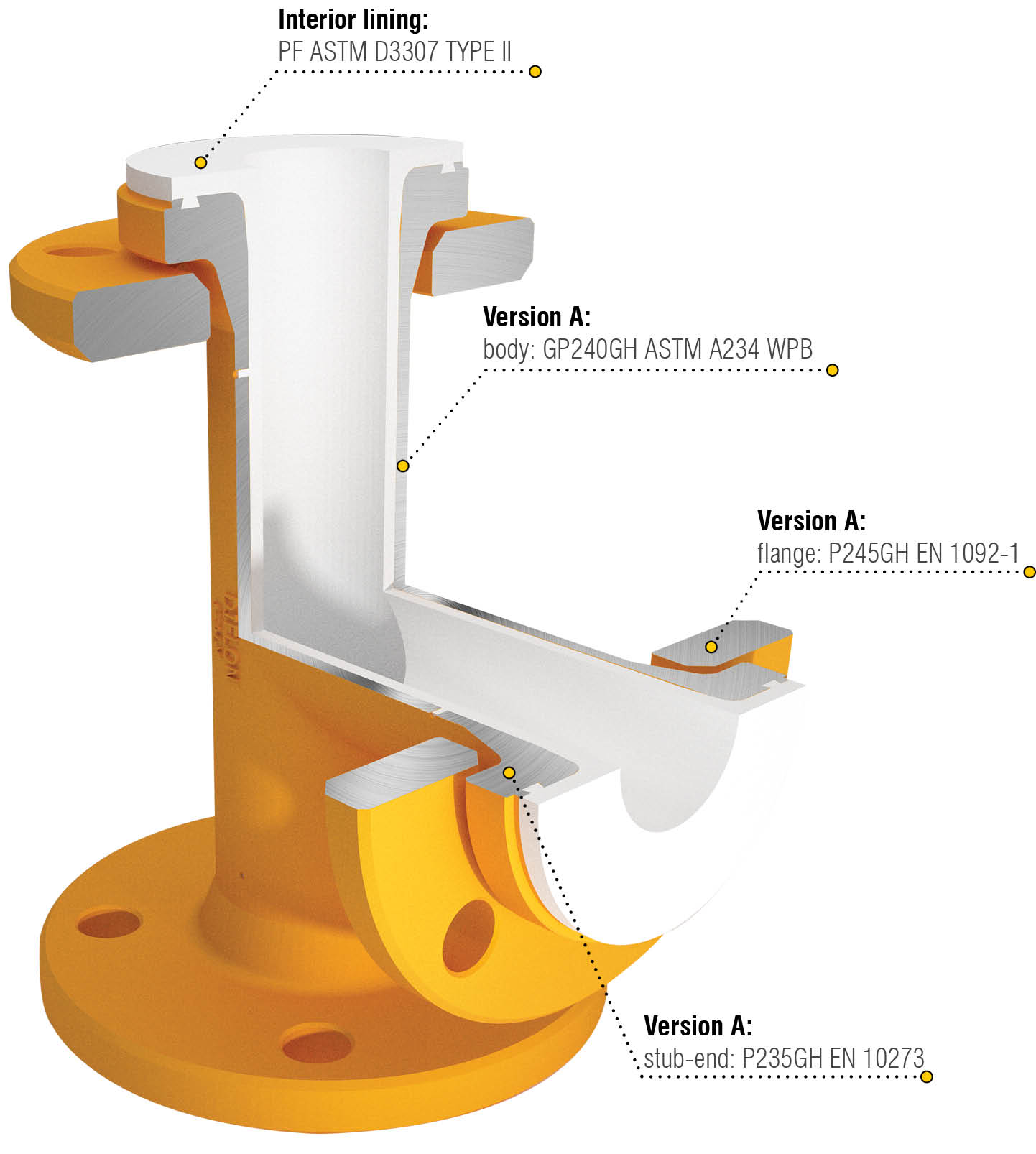

Version A:
With welded componentsBody: GP240GH ASTM A234 WPB Flange: P245GH EN 1092-1 Stub-end: P235GH EN 10273 |
|
Version F:
Fusion: GP240GH |
|
Interior Lining:
PTFE - PFA |
Standard finishing
gray epoxy-vinyl
zinc paint
Approvals and
Certifications
Certifications
Quality and
Special Tests
Special Tests
Engineering
Services
Services
Special
Supply
Supply
Stainless Steel
304L/316L
components
304L/316L
components
External
Finiture
Finiture
Technical Specification
| DN | L mm | s ± 10% mm | Weight kg |
|---|---|---|---|
| 15 | 80 | 3,0 | 2,5 |
| 20 | 95 | 3,5 | 3,2 |
| 25 | 110 | 3,5 | 5,5 |
| 32 | 130 | 4,5 | 8,0 |
| 40 | 150 | 4,5 | 9,5 |
| 50 | 120 | 5,0 | 11,5 |
| 65 | 140 | 5,0 | 14,5 |
| 80 | 165 | 5,0 | 19,5 |
| 100 | 205 | 5,0 | 24 |
| 125 | 245 | 5,5 | 34 |
| 150 | 285 | 6 | 45 |
| 200 | 365 | 10 | 72 |
| 250 | 450 | 6,5 | 165 |
| 300 | 525 | 13 | 160 |
| 350 | 600 | 6,5 | 312 |
| 400 | 680 | 6,5 | 375 |
| 450 | 680 | 6,5 | 400 |
| 500 | 500 | 6,5 | 420 |
| 600 | 500 | 4,5 | 580 |
