Data Sheet: C1-37

Glidetech Brewery HD

Glidetech Brewery HD

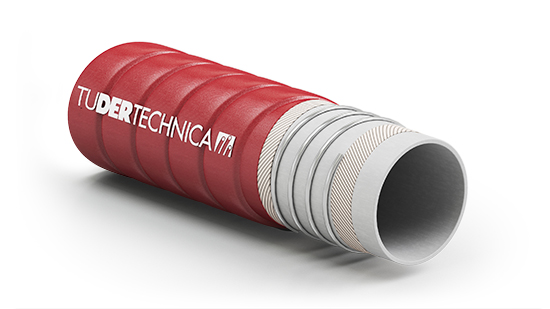

Premium grade low permeation extra flexible suction and delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.

Description

Tube
BIIR, white, phthalates free, tested in compliance with 1907/2006/ CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II

Reinforcement
synthetic plies, galvanized wire helices

Cover
wide corrugated, red, low friction material, non-marking when dragged on the floor, easy to clean, glossy. Abrasion, ozone, ageing, oil and chemical resistant

Sterilization
refer to guidelines for cleaning and sanitizing on Tudertechnica website

Marking
TUDERTECHNICA GLIDETECH® BREWERY HD
Temperature range: -40°C / +120°C ( -40°F / +248°F )
Norm: ISO 1307 for dimensional tolerances

Inside diameter		Theoretical outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	38	1,50	0,9	13	16	250	60	900	0,91	0,61	105	4,13
38	1,50	52,5	2,07	0,9	13	16	250	60	900	1,38	0,92	120	4,72
51	2,00	67	2,64	0,9	13	16	250	60	900	2,21	1,48	150	5,91
63,5	2,50	80,5	3,17	0,9	13	16	250	60	900	2,79	1,87	195	7,68
76	3,00	94	3,70	0,9	13	16	250	60	900	3,51	2,35	225	8,86
102	4,00	120	4,72	0,9	13	16	250	60	900	4,57	3,06	375	14,76

Data refer to ambient temperature (20°C). Other diameters, wall thickness, cover colours and pressure only on specific request.
