Data Sheet: C1-30

Tuchem® UPE Full Conductive

Tuchem UPE Full Conductive

Tuchem UPE Full Conductive

Suction and delivery hose designed according to EN 12115 standards for chemical products. Tested and certified hose by BUREAU VERITAS for use in Atex area (Ex-Zone).

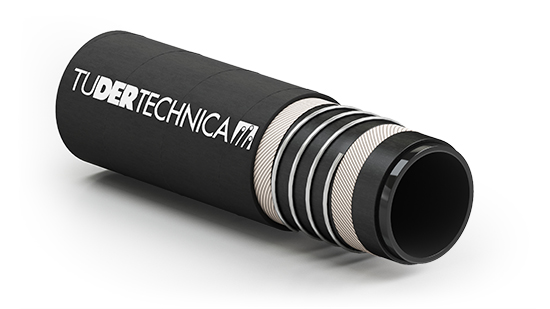

Description

Tube
UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE

Reinforcement
synthetic plies, galvanized wire helices, a/s wire to discharge static electricity

Cover
smooth, EPDM, black, conductive, cloth finish. Abrasion, ageing and ozone resistant

Sterilization
refer to guidelines for cleaning and sanitizing on Tudertechnica website

Marking
transfer blu/bianco
TUCHEM® UPE FULL CONDUCTIVE
embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω/T Q/Y

Technical Charatertistics
Temperature Range:-35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical Properties: type Ω/T according to norm EN 12115 (RNorm: EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,75	0,50	115	4,53
25	1,00	37	1,46	0,9	13	16	250	64	1000	0,92	0,62	155	6,10
32	1,25	44	1,73	0,9	13	16	250	64	1000	1,10	0,74	200	7,87
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,39	0,93	240	9,45
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,30	1,54	330	12,99
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,33	1,56	330	12,99
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	3,09	2,07	415	16,34
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,58	2,40	500	19,69
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,62	2,42	500	19,69
100	3,94	116	4,57	0,9	13	16	250	64	1000	4,63	3,10	675	26,57
102	4,00	118	4,65	0,9	13	16	250	64	1000	4,67	3,13	675	26,57

Data refer to ambient temperature (20°C).
