Ferrule Sms 1145
Description
|
MATERIAL: AISI 316L - AISI 304L |
 |
 |

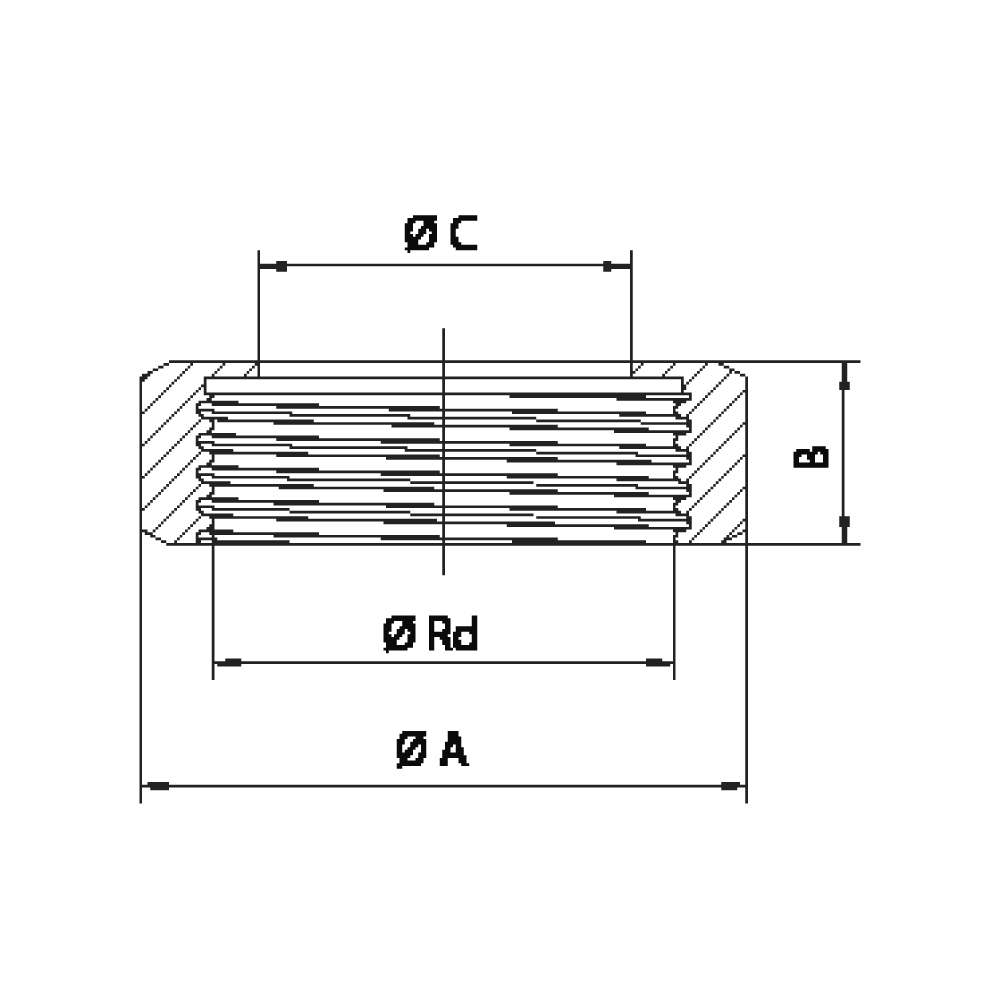

| DN | ØA | B | ØC | Ø Rd |
|---|---|---|---|---|
| 25 - 1" | 51 | 20 | 32 | 40 x 1/6 |
| 32 - 1 ¼" | 60 | 22 | 40 | 48 x 1/6 |
| 40 - 1 ½" | 74 | 25 | 48 | 60 x 1/6 |
| 50 - 2" | 84 | 26 | 61 | 70 x 1/6 |
| 65 - 2 ½" | 100 | 30 | 74 | 85 x 1/6 |
| 80 - 3" | 114 | 32 | 87 | 98 x 1/6 |
| 100 - 4" | 140 | 32 | 113 | 125 x 1/4 |
