    PTFE - PFA Lined Instrument Tees

DIFLINE COLORS

▶PTFE - PFA Lined Instrument Tees
Data Sheet: A2-42

PTFE - PFA Lined Instrument Tees

Design ASME B16.5 Class 150


Available on request

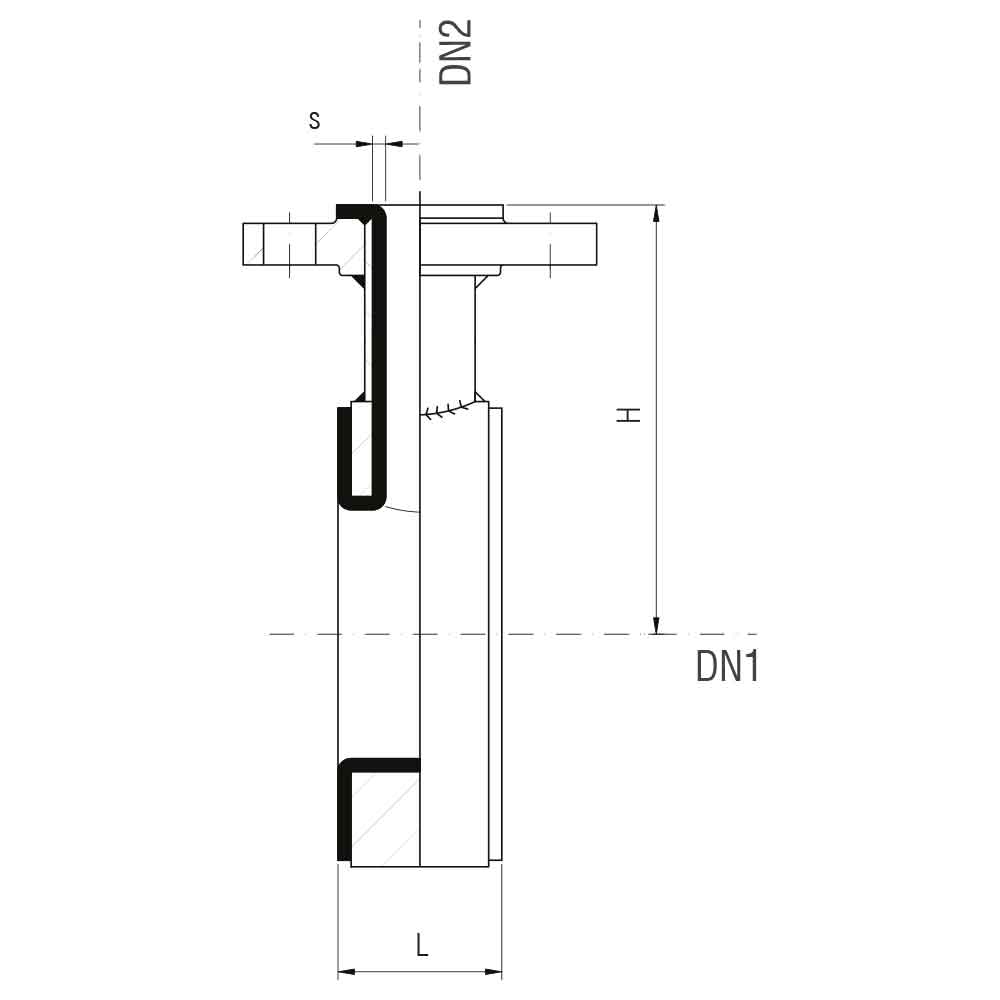

DN1 DN2 L mm H mm s Weight kg
1" 1/2"
3/4"
1"		 50  89  4 1,9
2,0
2,2
1 1/4" 1/2"
3/4"
1"		 50 95 4 2,1
2,3
2,5
1 1/2" 1/2"
3/4"
1"
1 1/2"		 50
50
50
75		 102 4 2,4
2,6
2,8
4,4
2" 1/2"
3/4"
1"
1 1/2"
2"		 50
50
50
75
90		 114 4 3,2
3,4
3,6
6,2
8,1
2 1/2" 1/2"
3/4"
1"
1 1/2"		 50
50
50
75		 127 4 3,7
3,8
3,9
7,2
3" 2"
1/2"
3/4"
1"
1 1/2"
2"		 90
50
50
50
75
90		 127
140		 4
4		 9,8
4,3
4,5
4,7
8,3
12,6
4" 1/2"
3/4"
1"
1 1/2"
2"		 50
50
50
75
90		 165 4,5 5,5
5,7
5,9
8,9
16,0
5" 1/2"
3/4"
1"
1 1/2"
2"		 50
50
50
75
90		 190 5 6,6
6,8
7,0
12,4
20,5
6" 1/2"
3/4"
1"
1 1/2"
2"		 50
50
50
75
90		 203 5 7,7
7,9
8,2
14,7
21,8
8" 1/2"
3/4"
1"
1 1/2"
2"		 50
50
50
75
90		 229 5 9,9
10,3
10,5
17,8
23,4
10" 1/2"
3/4"
1"
1 1/2"
2"		 50
50
50
75
90		 279 5 13,3
13,5
13,7
23,2
25,9
12" 1/2"
3/4"
1"
1 1/2"
2"		 90
90
90
110
120		 305 6,5 41,4
41,6
43,0
55,5
62,1
14" 1/2"
3/4"
1"
1 1/2"
2"		 90
90
90
110
120		 356 6,5 51,5
52,6
53,1
66,5
73,7
16" 1/2"
3/4"		 90
90		 381 6,5 58,2
58,6
