AISI 316L PFA Lined Female SMS 1145 with Protective Guard

FLEXILINE base COLORS standard

▶AISI 316L PFA Lined Female SMS 1145 with Protective Guard

Data Sheet: C2-66

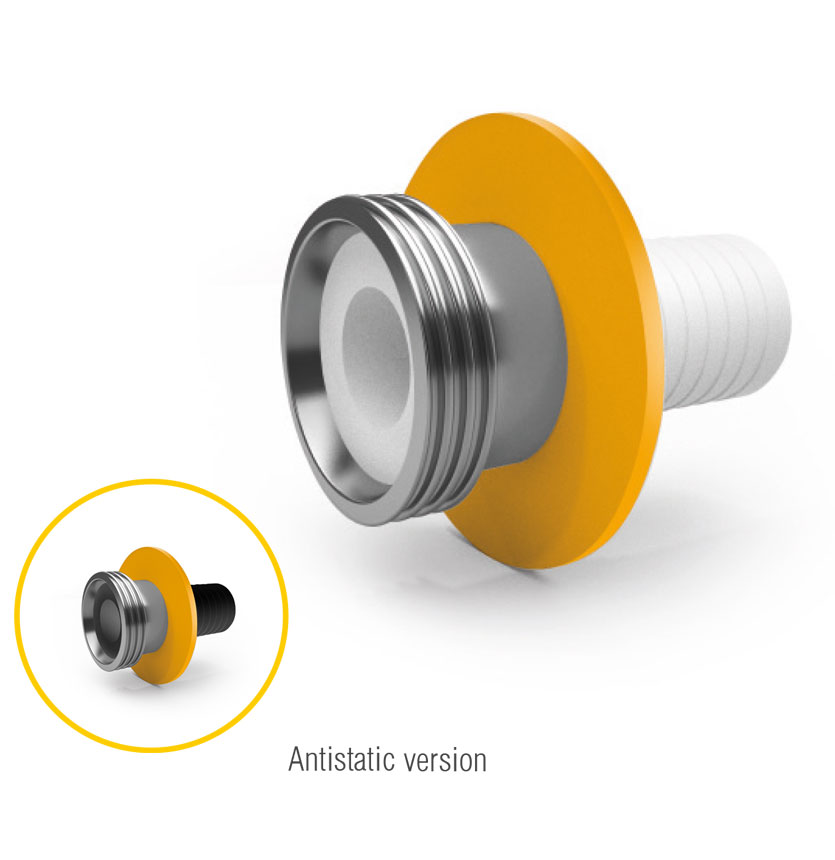

AISI 316L PFA Lined Female SMS 1145 with Protective Guard - Diflon C4

Fitting
Gasket

Fitting

Description

The fitting is used in chemicals and food industries to connect hoses quickly and safely to equipments and plants.

Standard construction material is AISI 316L/PFA.

The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C.

It is DIN 405 threaded.

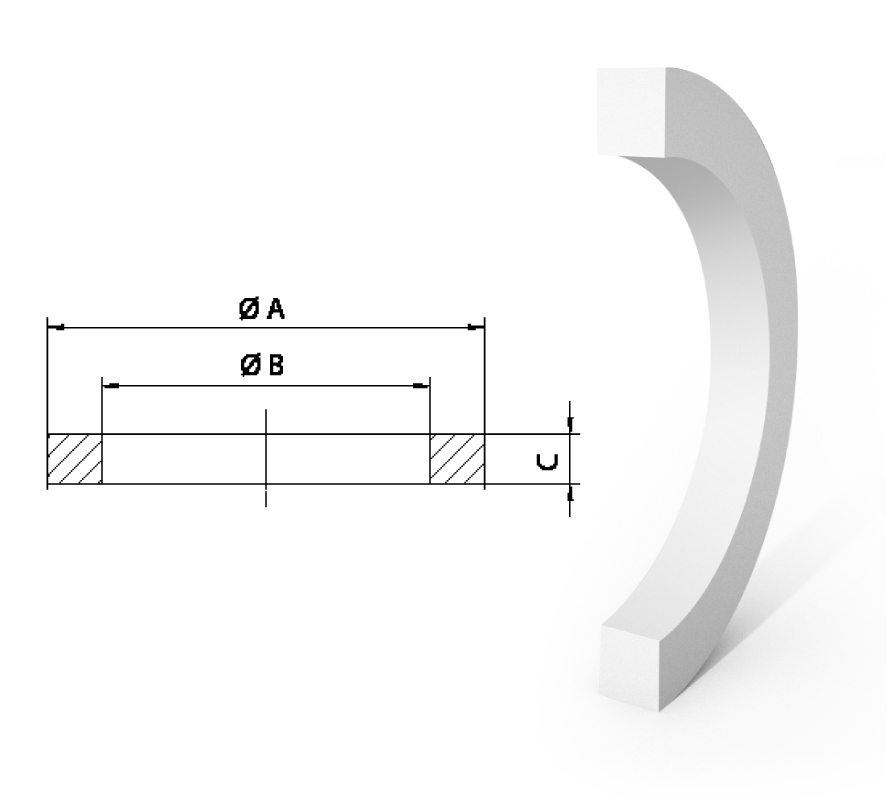

Gasket

Recommended Gasket

DIFLEX SMS 1145 gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar.

DN	ØA	ØB	C
25 - 1"	32	25	5,5
40 - 1 ½"	48	36	5,5
50 - 2"	61	51	5,5
80 - 3"	86	76	5,5

Approvals and
Certifications

Quality and
Special Tests

Engineering
Services

Special
Supply

Stainless Steel
304L/316L
components

External
Finiture

DN	L	l1	Ø Rd	Ø d1	Ø d2	ØA
25 - 1"	80	34	40-6	16	25,7	80
40 - 1 ½"	85	51	60-6	27	38,5	100
50 - 2"	95	62	70-6	39	51	110
80 - 3"	130	81	98-6	60	75	150

FLEXILINE - Raccordo SMS 1145 a portagomma femmina rivestito con protezione (Disegno tecnico)
