- Data Sheet: C1-22

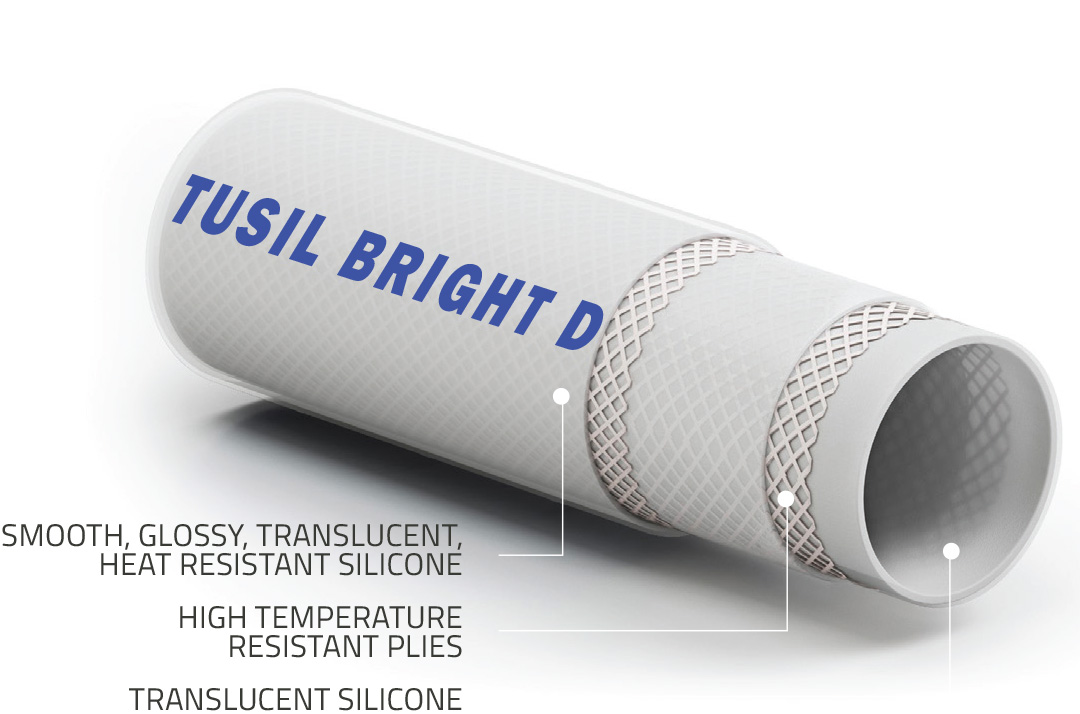

Tusil® Bright D / Delivery Hose
|
Delivery hose suitable for cosmetic, pharmaceutical and food products. Meets migration test according to BfR Recommendation XV & XXI Cat. 2. Not intended for use as an implant material. Not suitable for blood or human fluids. Description Tube Reinforcement Cover Sterilization Marking TECHNICAL CHARACTERISTICS |
| Inside Diameter | Outside Diameter | Vacuum | Working Pressure | Burst Pressure | Appr. Weight | Bending Radius | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [in] | [mm] | [in] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [kg/mt] | [lbs/ft] | [mm] | [in] |
| 10 | 0,39 | 22 | 0,87 | - | - | 16 | 250 | 48 | 750 | 0,35 | 0,23 | - | - |
| 13 | 0,50 | 25 | 1,00 | - | - | 15 | 225 | 45 | 675 | 0,41 | 0,27 | - | - |
| 16 | 0,63 | 28 | 1,10 | - | - | 14 | 210 | 42 | 630 | 0,48 | 0,32 | - | - |
| 19 | 0,75 | 31 | 1,22 | - | - | 13 | 195 | 39 | 585 | 0,55 | 0,37 | - | - |
| 25 | 1,00 | 37 | 1,46 | - | - | 10 | 150 | 30 | 450 | 0,68 | 0,46 | - | - |
| 32 | 1,25 | 44 | 1,73 | - | - | 8 | 120 | 24 | 360 | 0,83 | 0,56 | - | - |
| 38 | 1,50 | 50 | 1,97 | - | - | 7 | 105 | 21 | 315 | 0,96 | 0,64 | - | - |
| 51 | 2,00 | 63 | 2,48 | - | - | 6 | 90 | 18 | 270 | 1,24 | 0,83 | - | - |
| 63,5 | 2,50 | 76,5 | 3,01 | - | - | 5 | 75 | 15 | 225 | 1,68 | 1,13 | - | - |
| 76 | 3,00 | 89 | 3,50 | - | - | 4 | 60 | 12 | 180 | 1,98 | 1,33 | - | - |
| 102 | 4,00 | 115 | 4,53 | - | - | 3 | 45 | 9 | 135 | 2,61 | 1,75 | - | - |
