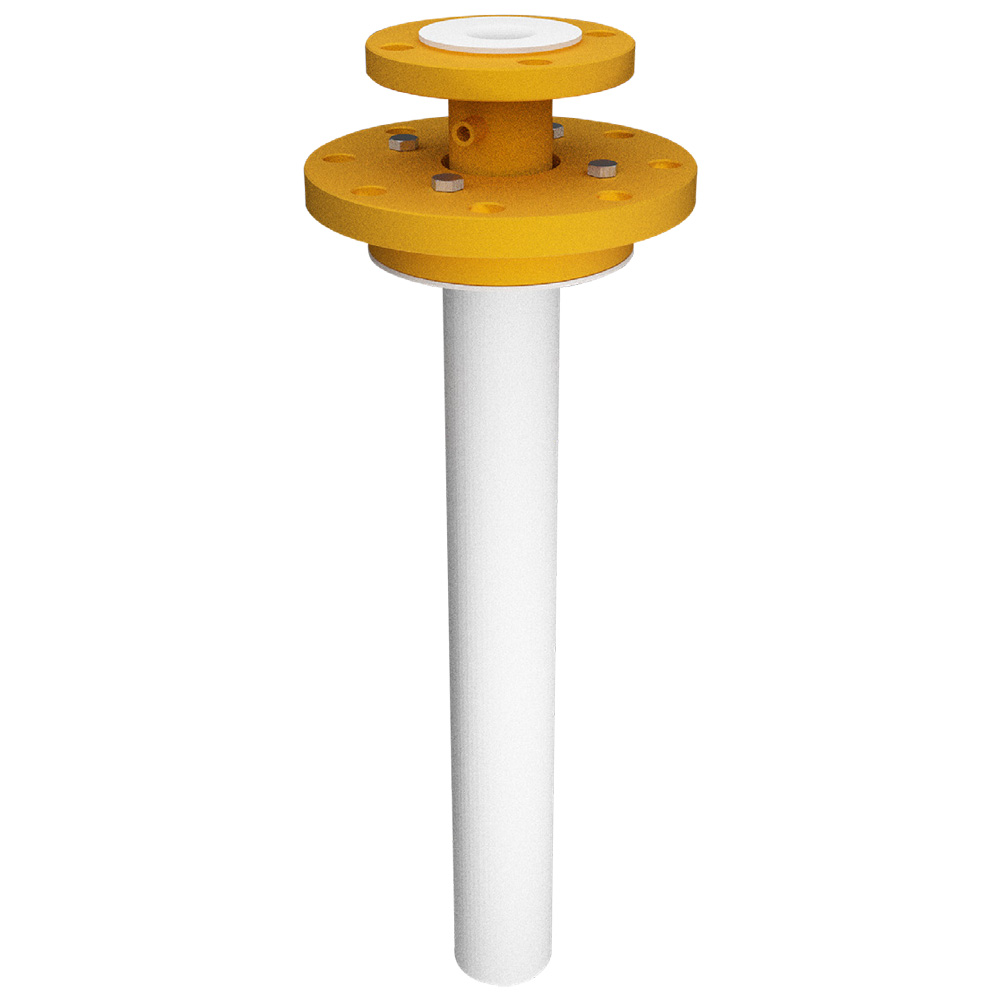

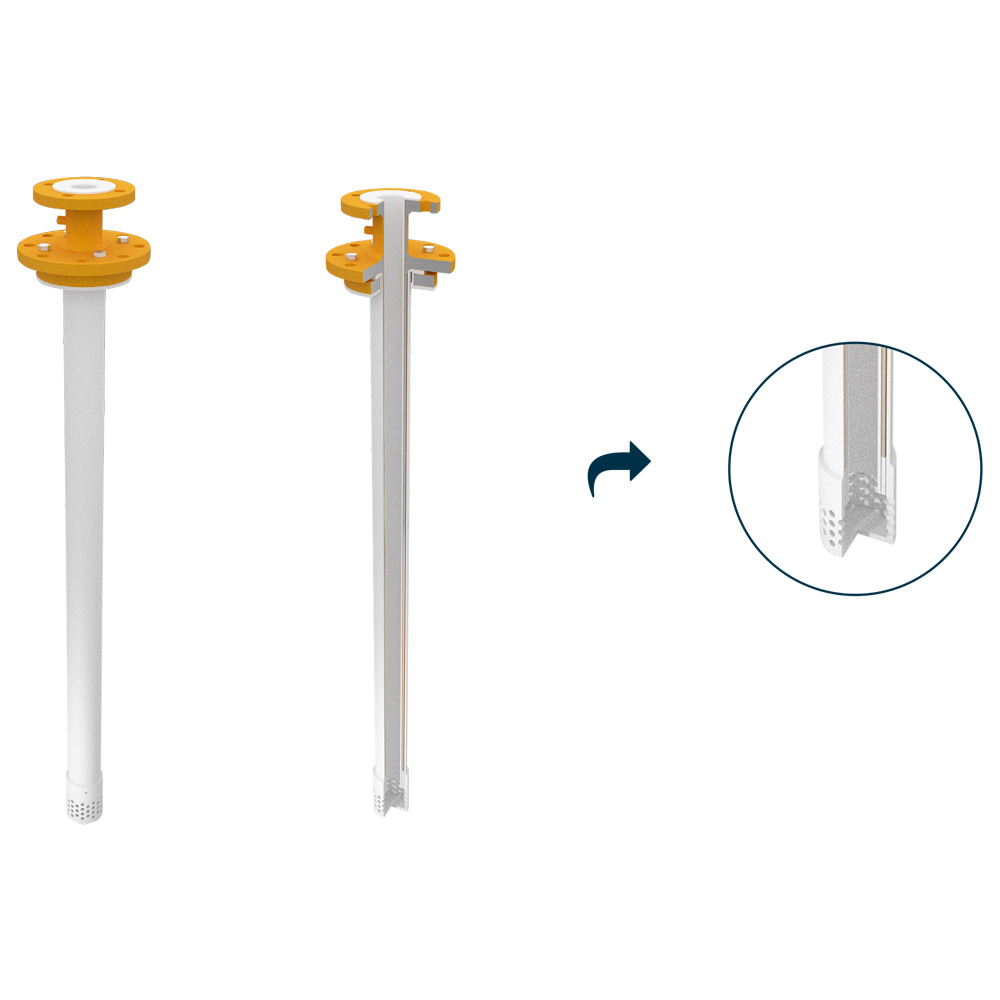

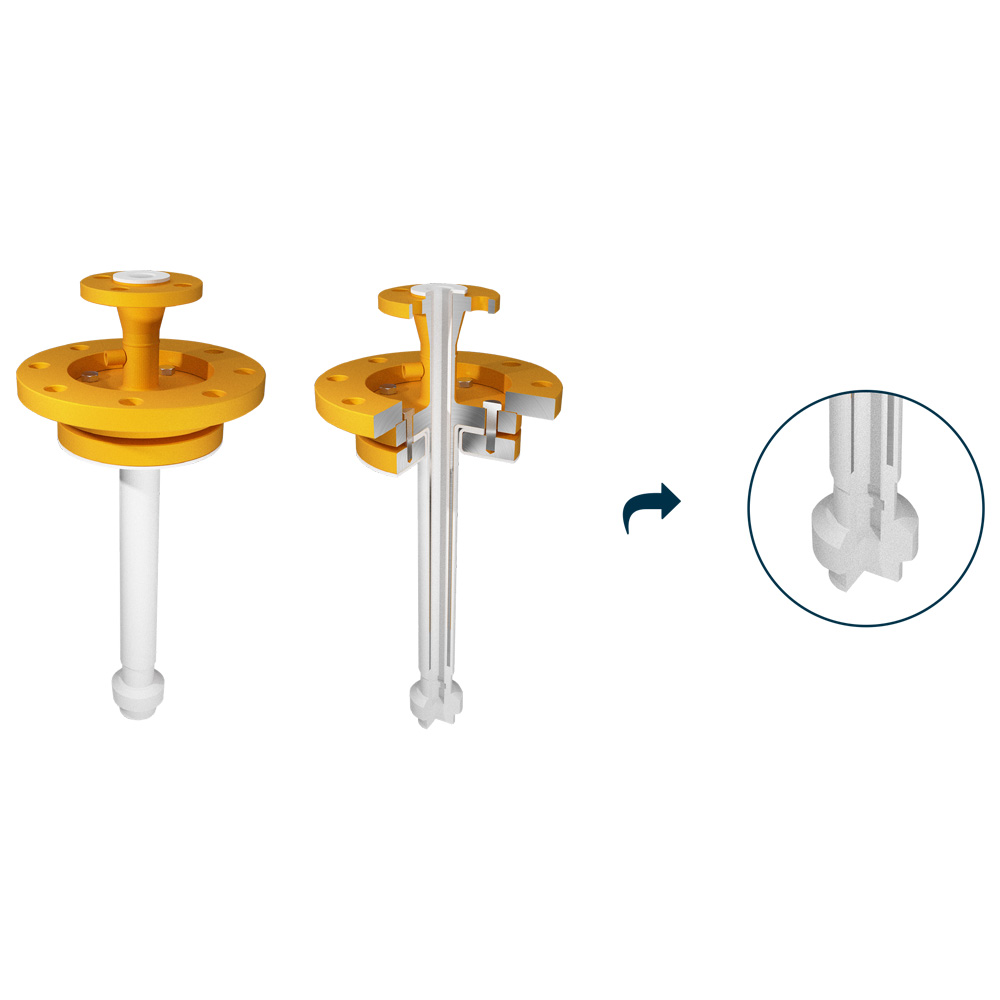

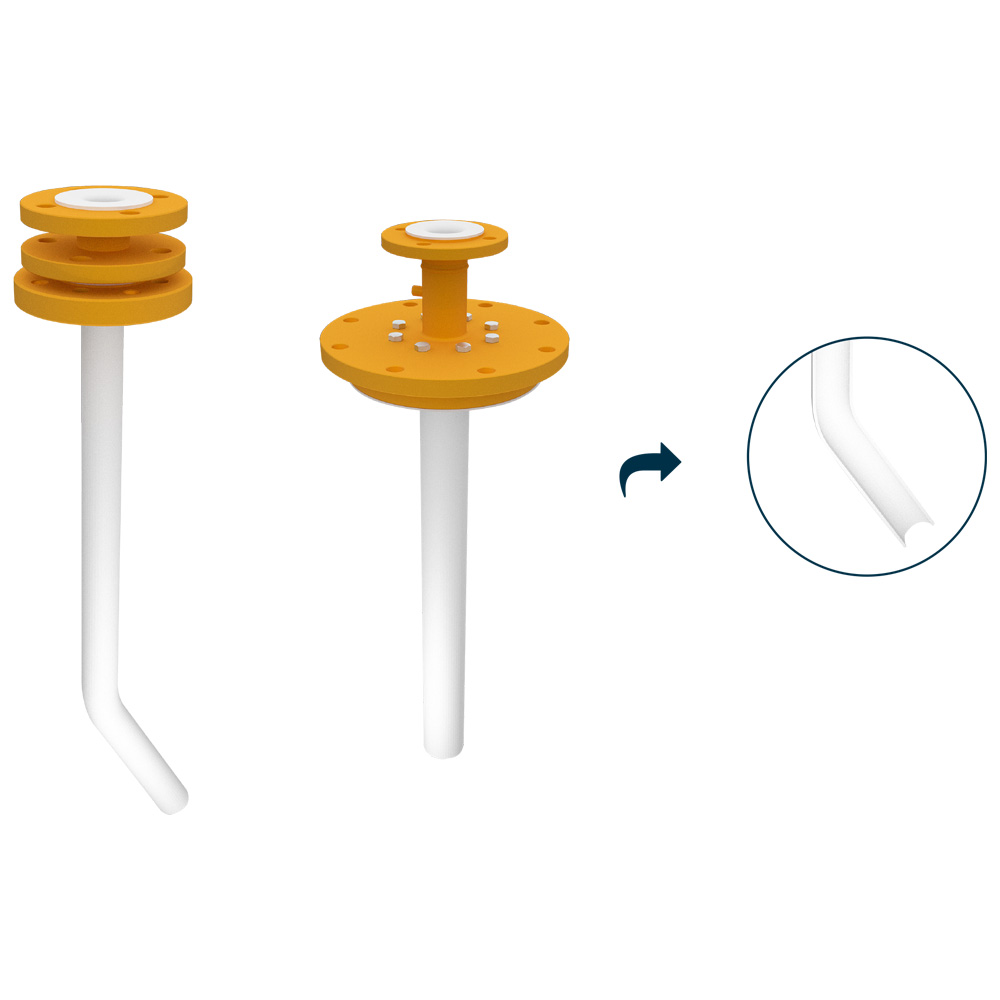

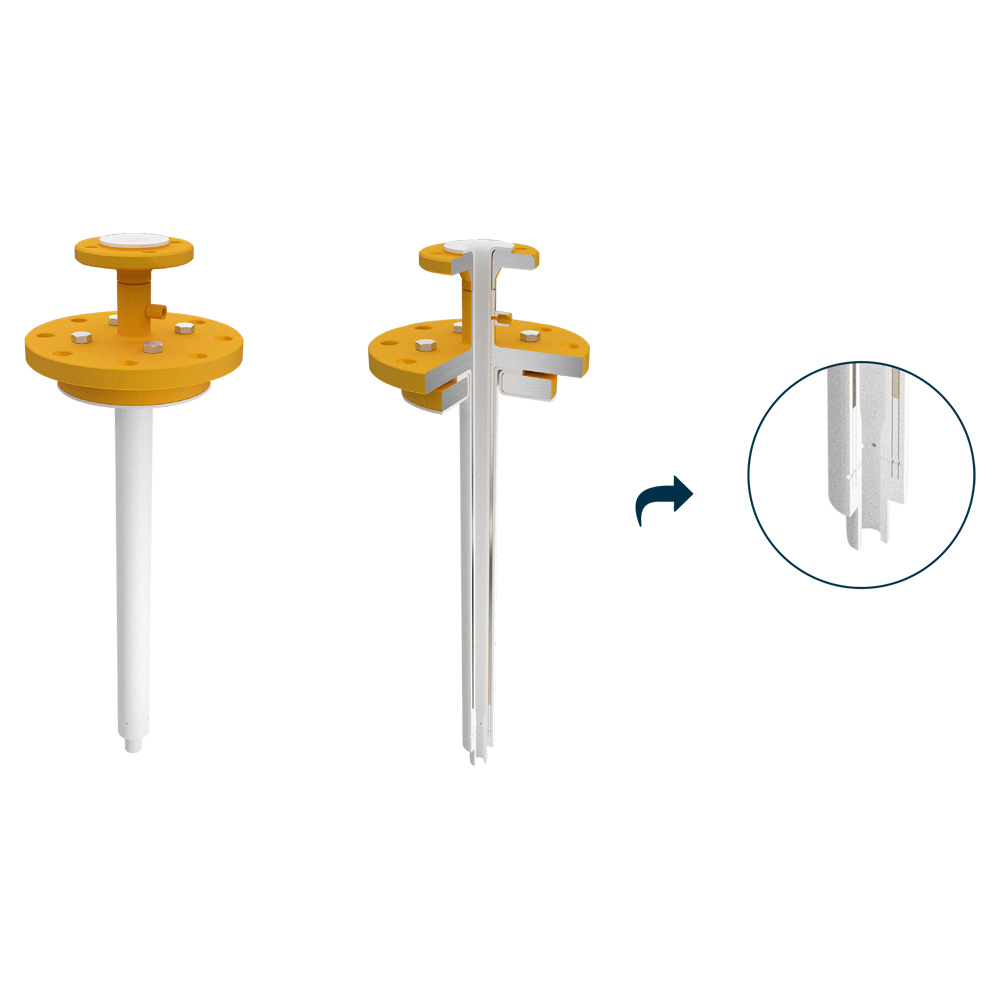

PTFE Lined DIP Pipe

Standard Supply

Features

Design:

To customer specification
Flange: DN1 fixed
DN2 fixed
EN 1092-1
1 fixed + 1 fixed

Range:

DN 15 - DN 500, PN 10

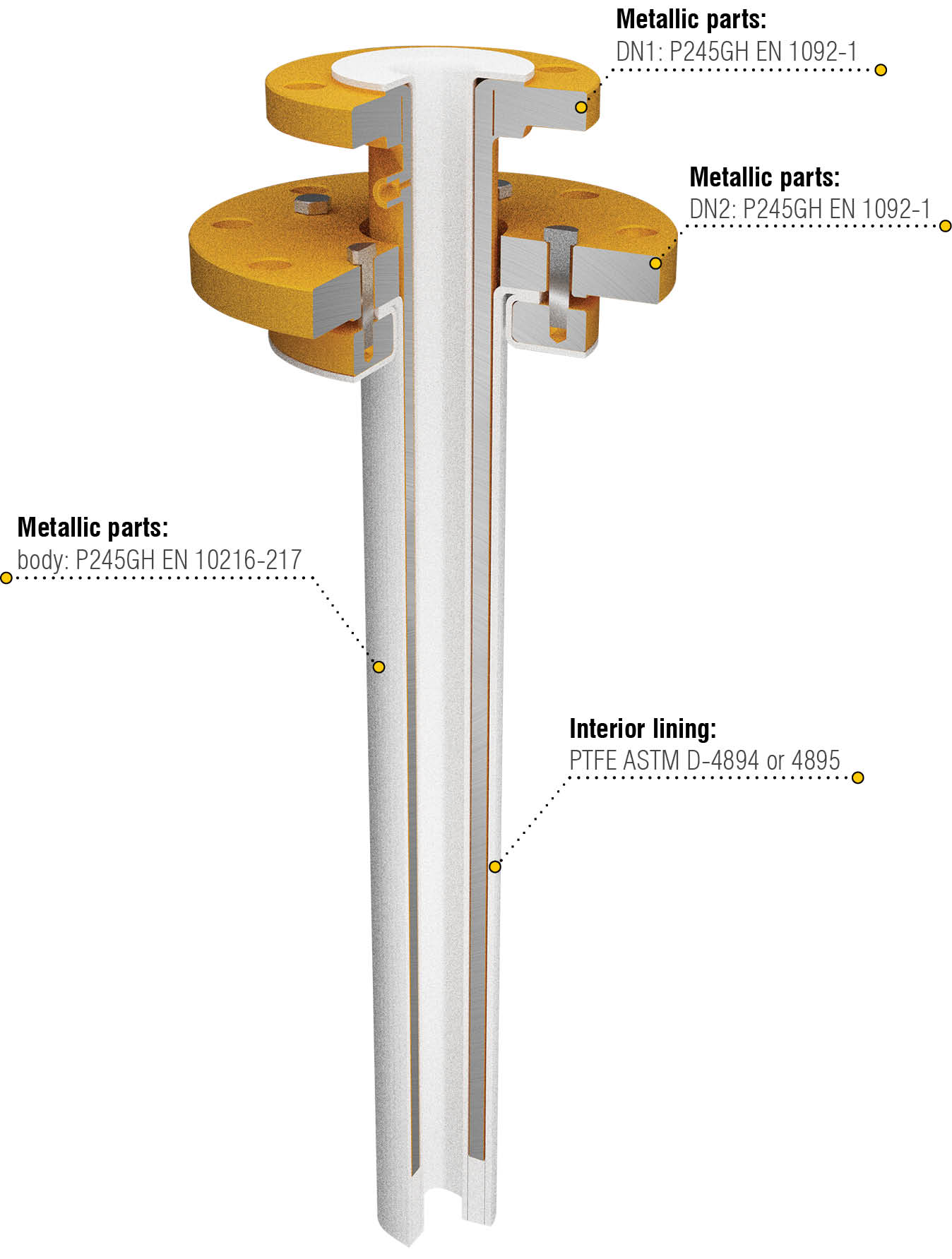

Metallic Parts:

body: P245GH EN 10216-217
flange: P245GH EN 1092-1
stub-end: P245GH EN 1092-1

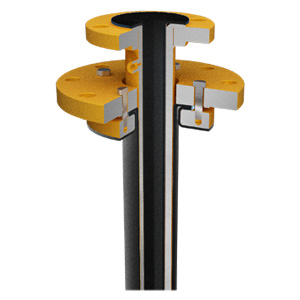

Interior Lining:

PTFE

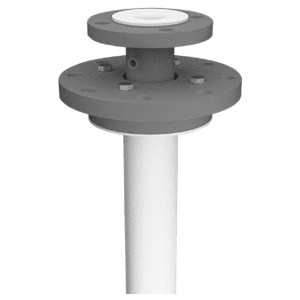

Standard finishing

gray epoxy-vinyl
zinc paint

Available on request

Approvals and
Certifications

Quality and
Special Tests

Engineering
Services

Special
Supply

Stainless Steel
304L/316L
components

External
Finiture

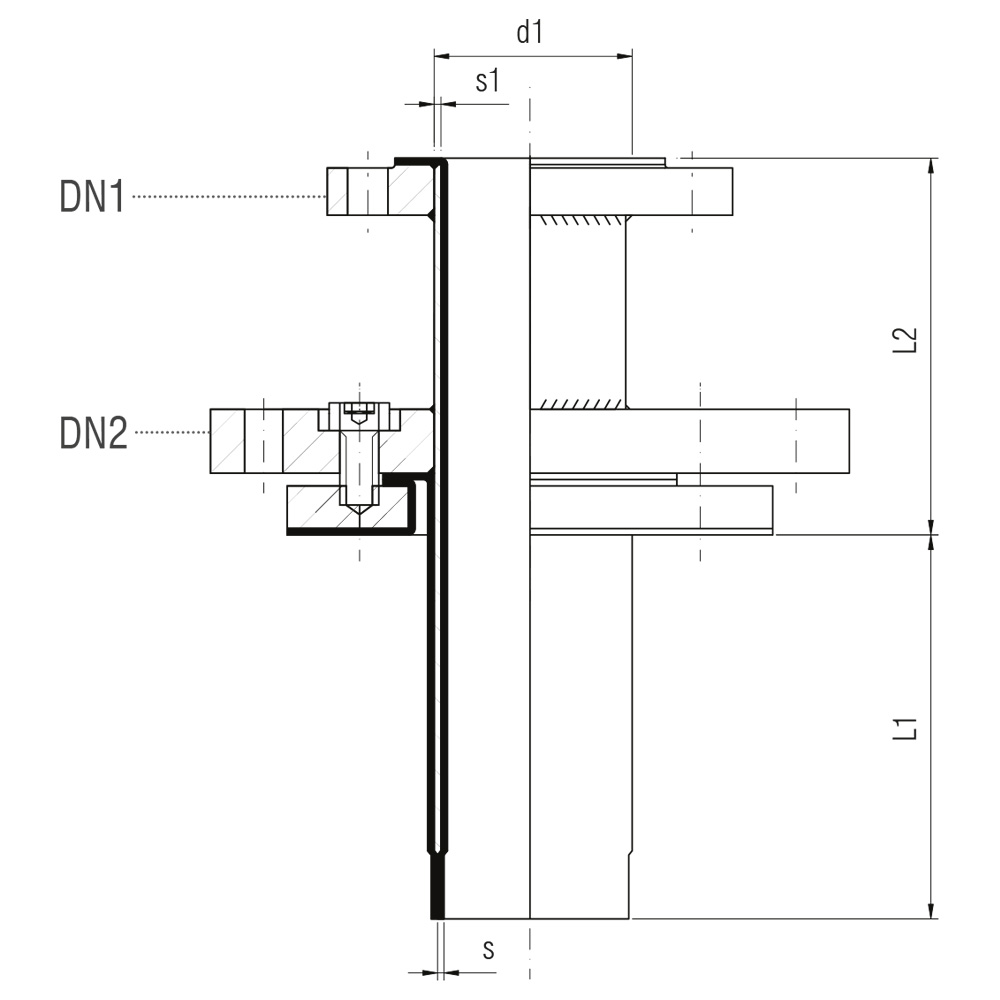

DN1	DN2	L1 max. ± 25 mm	L2 max. ±5 mm	d1 x s1	s± 10% mm	Weight kg
15	a richiesta	2500	150	26,9x2,3	3,0	1,3
20		2500	150	26,9x2,3	3,0	1,5
25		2500	150	33,7x2,6	3,0	2,0
32		2500	150	42,4x2,6	3,5	2,8
40		2500	150	48,3x2,6	3,5	3,4
50		2500	150	60,3x2,9	4,0	4,8
65		2500	150	76,1x2,9	4,5	6,4
80		2500	150	88,9x3,2	5,0	8,2
100		2500	150	114,3x3,6	5,5	11,5
125		2500	150	139,7x4,0	5,5	18,0
150		2500	150	168,3x4,5	6,0	28,7
200		2500	150	219,1x5,9	6,5	40,0
250		2500	150	273x6,3	7,0	57,0
300		2500	200	323,9x7,1	7,0	76,0
400		2500	200	406,4x8,0	7,0	120
