- Data Sheet: C2-81

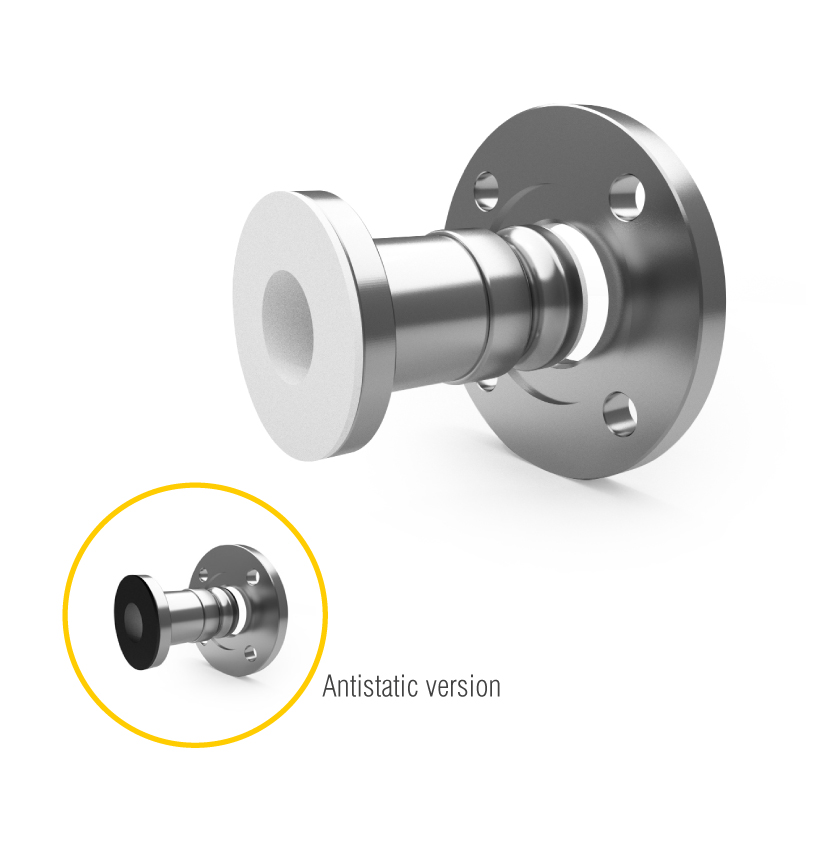

AISI 316L PFA Lined LAS FL EN 14420-7:2004 CAM & GROOVE Retainer - Diflon F8
Fitting
Description
| The fast fitting is used in chemical, pharmaceutical and food industries. The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of fitting from the other ones. The standard construction material is AISI 316L/PFA. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. The flange can be provided in the Standard Specification and material according to customer requirements. |

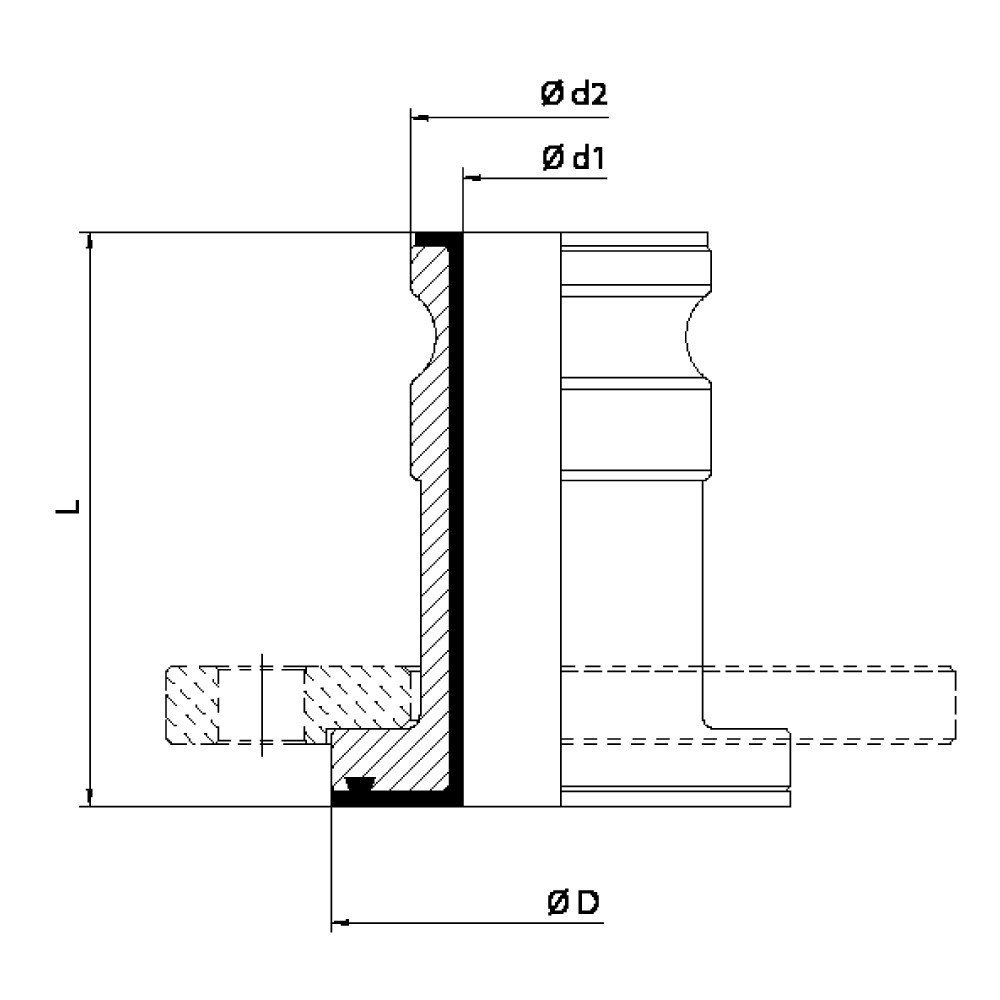

| DN | L | ØD | Ø d1 | Ø d2 |
|---|---|---|---|---|
| 20 - ¾" | 85 | 47 | 17 | 29 |
| 25 - 1" | 95 | 58 | 20 | 36,5 |
| 32 - 1 ¼" | 100 | 68 | 28 | 44,5 |
| 40 - 1 ½" | 105 | 78 | 32 | 53 |
| 50 - 2" | 115 | 92 | 42 | 63 |
| 65 - 2 ½" | 125 | 105 | 55 | 75,5 |
| 80 - 3" | 130 | 127 | 70 | 91 |
| 100 - 4" | 130 | 158 | 94 | 120 |
