AISI 316L PFA Lined Female DIN 11851 with Protective Guard - Diflon B4

• Fitting
• Gasket

Fitting

Download PDF

Description

The fitting is used in chemicals and food industries to connect hoses quickly and safely to equipments and plants. Standard construction material is AISI 316L/ PFA. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. It is DIN 405 threaded.

Gasket

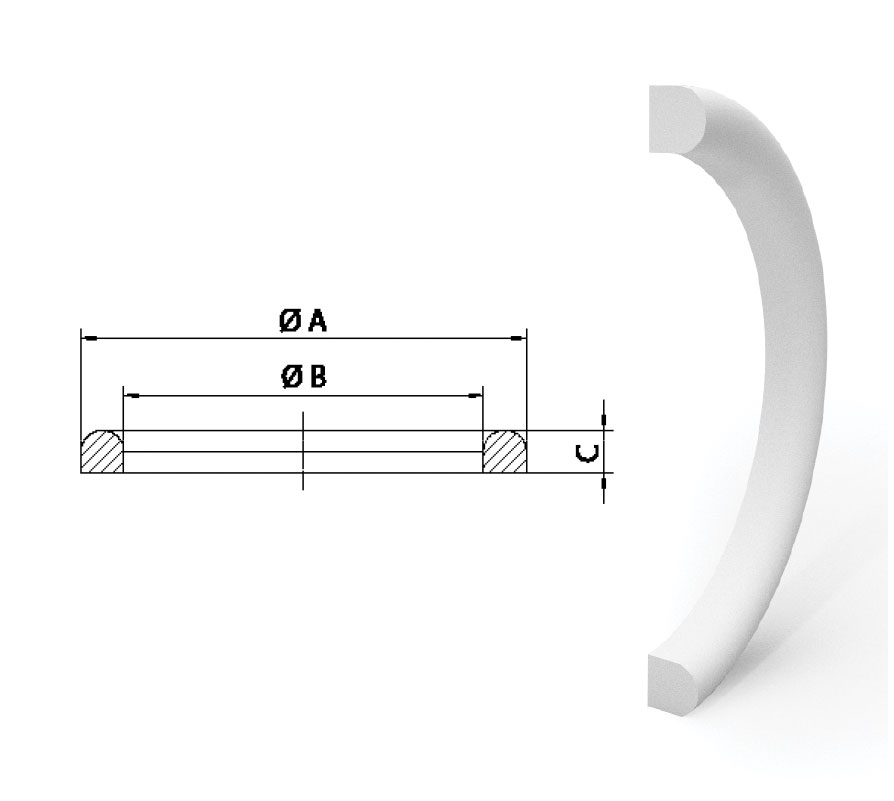

Recommended Gasket

DIFLEX DIN 11851 gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar.

DN	Ø A	Ø B	C
25 - 1"	40	30	5
40 - 1 ½"	52	42	5
50 - 2"	64	54	5
80 - 3"	95	85	5
