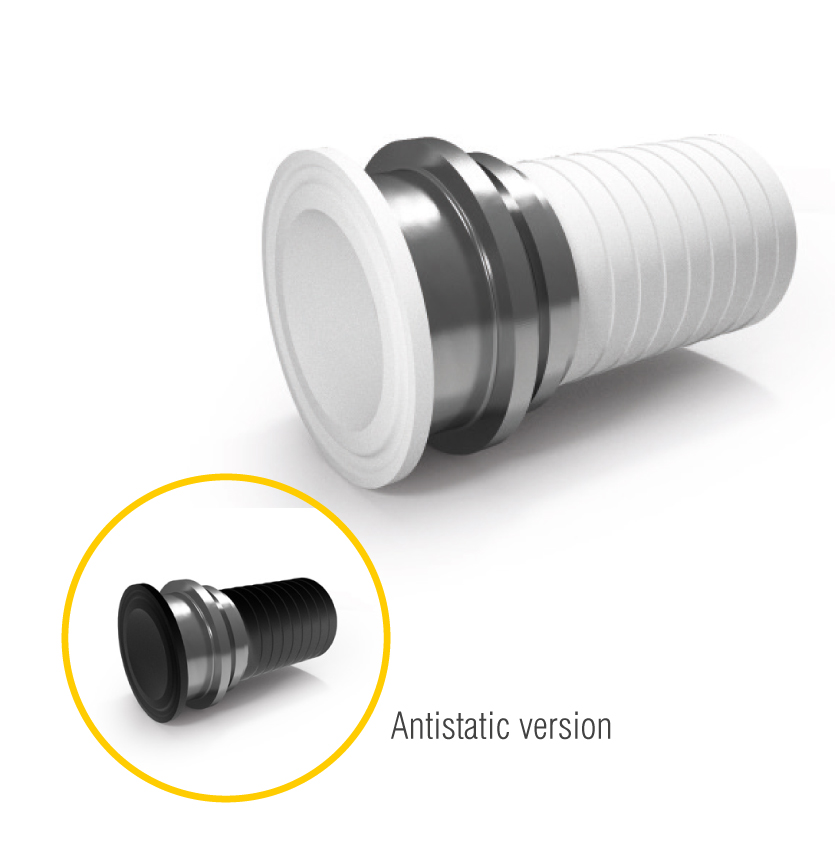

AISI 316L BS 4825 Sanitary Clamp Retainer PFA Lined - Diflon E2

Fitting
Gasket

Fitting

Description

E2 fitting is used in pharmaceutical and food industries to connect hoses quickly and safely to equipments and plants. to equipments and plants in quickly way. Standard construction material is AISI 316L/PFA. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. The fitting is laser marked with material, lot/casting, DN and brand.

Gasket

Recommended Gasket

DIFLEX BS 4825 clamp gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar.

Guarnizione Clamp BS 4825

DN	C	ØR	ØS
25 - 1"	1,7	50,5	22,1
40 - 1 1⁄2"	1,7	64	47,4
50 - 2"	1,7	77,5	60,5

Download PDF

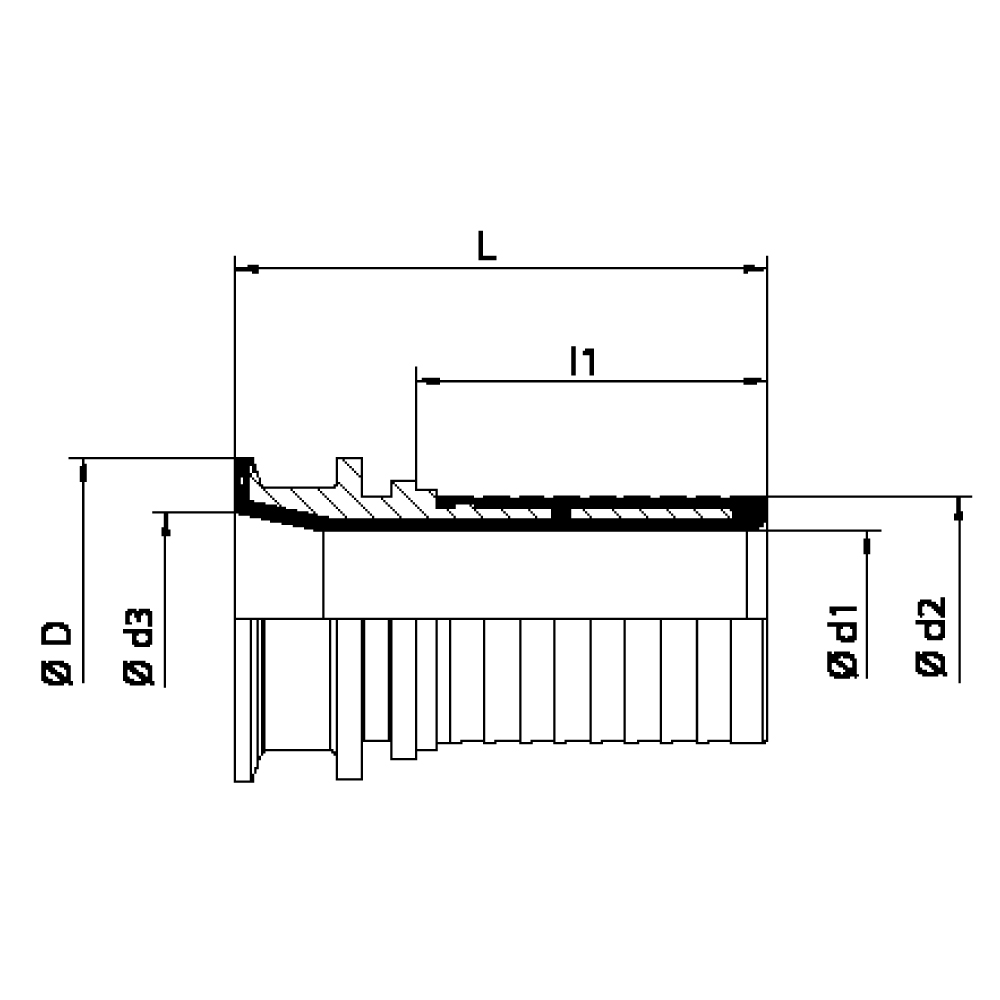

DN	L	l1	ØD	Ø d1	Ø d2	Ø d3
25 - 1"	69	46	50,5	16,5	25,7	19,8
40 - 1 ½"	76	60	50,5	27	38,5	34
50 - 2"	93	64	63,9	38,5	50,8	44

FLEXILINE - Raccordo Clamp BS 4825 rivestito (Disegno tecnico)
